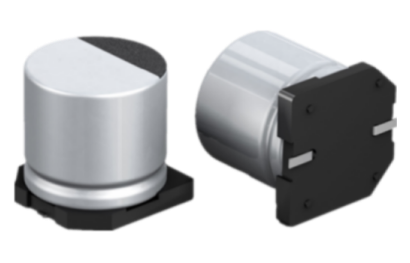

SMD UZ Series

ALL

Image Description and Main Parameters Part Series Code Dimension Original Part Number Documents
150µF 50V ±20% 0.25 ohm Max. 450mA 2000 hours UZ157M050HGKTA Ø10.00*L10.20mm CAE157M1HHUZGJ2TR Data Sheet View Inventory
100µF 50V ±20% 0.34 ohm Max. 369mA 2000 hours UZ107M050HFKTA Ø8.00*L10.20mm CAE107M1HHUZFJ2TR Data Sheet View Inventory
33µF 50V ±20% 0.68 ohm Max.185mA 2000 hours UZ336M050HEJTA Ø6.30*L7.70mm CAE336M1HHUZEG7TRC Data Sheet View Inventory
22µF 50V ±20% 0.88 ohm Max. 165mA 2000 hours UZ226M050HEHTA Ø6.30*L5.40mm CAE226M1HHUZEE4TRC Data Sheet View Inventory
10µF 50V ±20% 2.2 ohm Max. 70mA 2000 hours UZ106M050HDHTA Ø5.00*L5.40mm CAE106M1HHUZDE4TRC Data Sheet View Inventory
3.3µF 50V ±20% 2.9 ohm Max. 60mA 2000 hours UZ335M050HCHTA Ø4.00*L5.40mm CAE335M1HHUZCE4TRC Data Sheet View Inventory
4.7µF 50V ±20% 2.9 ohm Max. 60mA 2000 hours UZ475M050HCHTA Ø4.00*L5.40mm CAE475M1HHUZCE4TRC Data Sheet View Inventory
2.2µF 50V ±20% 2.9 ohm Max. 60mA 2000 hours UZ225M050HCHTA Ø4.00*L5.40mm CAE225M1HHUZCE4TRC Data Sheet View Inventory
220µF 35V ±20% 0.19 ohm Max. 450mA 2000 hours UZ227M035HFKTA Ø8.00*L10.20mm CAE227M1VHUZFJ2TR Data Sheet View Inventory
150µF 35V ±20% 0.19 ohm Max. 450mA 2000 hours UZ157M035HFKTA Ø8.00*L10.20mm CAE157M1VHUZFJ2TR Data Sheet View Inventory
100µF 35V ±20% 0.19 ohm Max. 450mA 2000 hours UZ107M035HFKTA Ø8.00*L10.20mm CAE107M1VHUZFJ2TR Data Sheet View Inventory
68µF 35V ±20% 0.34 ohm Max. 290mA 2000 hours UZ686M035HEJTA Ø6.30*L7.70mm CAE686M1VHUZEG7TRC Data Sheet View Inventory
33µF 35V ±20% 0.44 ohm Max. 240mA 2000 hours UZ336M035HEHTA Ø6.30*L5.40mm CAE336M1VHUZEE4TRC Data Sheet View Inventory
22µF 35V ±20% 0.44 ohm Max. 240mA 2000 hours UZ226M035HEHTA Ø6.30*L5.40mm CAE226M1VHUZEE4TRC Data Sheet View Inventory
10µF 35V ±20% 0.9 ohm Max. 160mA 2000 hours UZ106M035HDHTA Ø5.00*L5.40mm CAE106M1VHUZDE4TRC Data Sheet View Inventory
4.7µF 35V ±20% 1.65 ohm Max. 90mA 2000 hours UZ475M035HCHTA Ø4.00*L5.40mm CAE475M1VHUZCE4TRC Data Sheet View Inventory
470µF 25V ±20% 0.18 ohm Max. 600mA 2000 hours UZ477M025HGKTA Ø10.00*L10.20mm CAE477M1EHUZGJ2TR Data Sheet View Inventory
220µF 25V ±20% 0.19 ohm Max. 450mA 2000 hours UZ227M025HFKTA Ø8.00*L10.20mm CAE227M1EHUZFJ2TR Data Sheet View Inventory
330µF 25V ±20% 0.19 ohm Max. 450mA 2000 hours UZ337M025HFKTA Ø8.00*L10.20mm CAE337M1EHUZFJ2TR Data Sheet View Inventory
150µF 25V ±20% 0.19 ohm Max. 450mA 2000 hours UZ157M025HFKTA Ø8.00*L10.20mm CAE157M1EHUZFJ2TR Data Sheet View Inventory
100µF 25V ±20% 0.34 ohm Max. 290mA 2000 hours UZ107M025HEJTA Ø6.30*L7.70mm CAE107M1EHUZEG7TRC Data Sheet View Inventory
47µF 25V ±20% 0.44 ohm Max. 240mA 2000 hours UZ476M025HEHTA Ø6.30*L5.40mm CAE476M1EHUZEE4TRC Data Sheet View Inventory
68µF 25V ±20% 0.44 ohm Max. 240mA 2000 hours UZ686M025HEHTA Ø6.30*L5.40mm CAE686M1EHUZEE4TRC Data Sheet View Inventory
33µF 25V ±20% 0.44 ohm Max. 240mA 2000 hours UZ336M025HEHTA Ø6.30*L5.40mm CAE336M1EHUZEE4TRC Data Sheet View Inventory
22µF 25V ±20% 0.9 ohm Max. 160mA 2000 hours UZ226M025HDHTA Ø5.00*L5.40mm CAE226M1EHUZDE4TRC Data Sheet View Inventory
10µF 25V ±20% 1.65 ohm Max. 90mA 2000 hours UZ106M025HCHTA Ø4.00*L5.40mm CAE106M1EHUZCE4TRC Data Sheet View Inventory
680µF 16V ±20% 0.18 ohm Max. 600mA 2000 hours UZ687M016HGKTA Ø10.00*L10.20mm CAE687M1CHUZGJ2TR Data Sheet View Inventory
470µF 16V ±20% 0.19 ohm Max. 450mA 2000 hours UZ477M016HFKTA Ø8.00*L10.20mm CAE477M1CHUZFJ2TR Data Sheet View Inventory
330µF 16V ±20% 0.19 ohm Max. 450mA 2000 hours UZ337M016HFKTA Ø8.00*L10.20mm CAE337M1CHUZFJ2TR Data Sheet View Inventory
100µF 16V ±20% 0.44 ohm Max. 240mA 2000 hours UZ107M016HEHTA Ø6.30*L5.40mm CAE107M1CHUZEE4TRC Data Sheet View Inventory
220µF 16V ±20% 0.34 ohm Max. 290mA 2000 hours UZ227M016HEJTA Ø6.30*L7.70mm CAE227M1CHUZEG7TRC Data Sheet View Inventory
150µF 16V ±20% 0.34 ohm Max. 290mA 2000 hours UZ157M016HEJTA Ø6.30*L7.70mm CAE157M1CHUZEG7TRC Data Sheet View Inventory
47µF 16V ±20% 0.9 ohm Max. 160mA 2000 hours UZ476M016HDHTA Ø5.00*L5.40mm CAE476M1CHUZDE4TRC Data Sheet View Inventory
68µF 16V ±20% 0.44 ohm Max. 240mA 2000 hours UZ686M016HEHTA Ø6.30*L5.40mm CAE686M1CHUZEE4TRC Data Sheet View Inventory
33µF 16V ±20% 0.44 ohm Max. 240mA 2000 hours UZ336M016HEHTA Ø6.30*L5.40mm CAE336M1CHUZEE4TRC Data Sheet View Inventory
22µF 16V ±20% 0.9 ohm Max. 160mA 2000 hours UZ226M016HDHTA Ø5.00*L5.40mm CAE226M1CHUZDE4TRC Data Sheet View Inventory
10µF 16V ±20% 1.65 ohm Max. 90mA 2000 hours UZ106M016HCHTA Ø4.00*L5.40mm CAE106M1CHUZCE4TRC Data Sheet View Inventory
680µF 10V ±20% 0.16 ohm Max. 600mA 2000 hours UZ687M010HFKTA Ø8.00*L10.20mm CAE687M1AHUZFJ2TR Data Sheet View Inventory
1000µF 10V ±20% 0.18 ohm Max. 850mA 2000 hours UZ108M010HGKTA Ø10.00*L10.20mm CAE108M1AHUZGJ2TR Data Sheet View Inventory
330µF 10V ±20% 0.34 ohm Max. 290mA 2000 hours UZ337M010HEJTA Ø6.30*L7.70mm CAE337M1AHUZEG7TRC Data Sheet View Inventory
470µF 10V ±20% 0.34 ohm Max. 290mA 2000 hours UZ477M010HEJTA Ø6.30*L7.70mm CAE477M1AHUZEG7TRC Data Sheet View Inventory
220µF 10V ±20% 0.34 ohm Max. 290mA 2000 hours UZ227M010HEJTA Ø6.30*L7.70mm CAE227M1AHUZEG7TRC Data Sheet View Inventory
68µF 10V ±20% 0.44 ohm Max. 240mA 2000 hours UZ686M010HEHTA Ø6.30*L5.40mm CAE686M1AHUZEE4TRC Data Sheet View Inventory
100µF 10V ±20% 0.44 ohm Max. 240mA 2000 hours UZ107M010HEHTA Ø6.30*L5.40mm CAE107M1AHUZEE4TRC Data Sheet View Inventory
150µF 10V ±20% 0.44 ohm Max. 240mA 2000 hours UZ157M010HEHTA Ø6.30*L5.40mm CAE157M1AHUZEE4TRC Data Sheet View Inventory
47µF 10V ±20% 0.44 ohm Max. 240mA 2000 hours UZ476M010HEHTA Ø6.30*L5.40mm CAE476M1AHUZEE4TRC Data Sheet View Inventory
33µF 10V ±20% 0.9 ohm Max. 160mA 2000 hours UZ336M010HDHTA Ø5.00*L5.40mm CAE336M1AHUZDE4TRC Data Sheet View Inventory
22µF 10V ±20% 1.65 ohm Max. 90mA 2000 hours UZ226M010HCHTA Ø4.00*L5.40mm CAE226M1AHUZCE4TRC Data Sheet View Inventory
1500µF 50V ±20% 0.18 ohm Max. 600mA 2000 hours UZ158M6V3HGKTA Ø10.00*L10.20mm CAE158M0JHUZGJ2TR Data Sheet View Inventory
680µF 6.3V ±20% 0.19 ohm Max. 450mA 2000 hours UZ687M6V3HFKTA Ø8.00*L10.20mm CAE687M0JHUZFJ2TR Data Sheet View Inventory
1000µF 6.3V ±20% 0.19 ohm Max. 450mA 2000 hours UZ108M6V3HFKTA Ø8.00*L10.20mm CAE108M0JHUZFJ2TR Data Sheet View Inventory
470µF 6.3V ±20% 0.19 ohm Max. 450mA 2000 hours UZ477M6V3HFKTA Ø8.00*L10.20mm CAE477M0JHUZFJ2TR Data Sheet View Inventory
330µF 6.3V ±20% 0.34 ohm Max. 290mA 2000 hours UZ337M6V3HEJTA Ø6.30*L7.70mm CAE337M0JHUZEG7TRC Data Sheet View Inventory
100µF 6.3V ±20% 0.44 ohm Max. 240mA 2000 hours UZ107M6V3HEHTA Ø6.30*L5.40mm CAE107M0JHUZEE4TRC Data Sheet View Inventory
150µF 6.3V ±20% 0.44 ohm Max. 240mA 2000 hours UZ157M6V3HEHTA Ø6.30*L5.40mm CAE157M0JHUZEE4TRC Data Sheet View Inventory
220µF 6.3V ±20% 0.44 ohm Max. 240mA 2000 hours UZ227M6V3HEHTA Ø6.30*L5.40mm CAE227M0JHUZEE4TRC Data Sheet View Inventory
68µF 6.3V ±20% 0.44 ohm 240mA 2000 hours UZ686M6V3HEHTA Ø6.30*L5.40mm CAE686M0JHUZEE4TRC Data Sheet View Inventory
47µF 6.3V ±20% 0.9 ohm Max. 160mA 2000 hours UZ476M6V3HDHTA Ø5.00*L5.40mm CAE476M0JHUZDE4TRC Data Sheet View Inventory
33µF 6.3V ±20% 1.65 ohm Max. 90mA 2000 hours UZ336M6V3HCHTA Ø4.00*L5.40mm CAE336M0JHUZCE4TRC Data Sheet View Inventory
22µF 6.3V ±20% 1.65 ohm Max. 90mA 2000 hours UZ226M6V3HCHTA Ø4.00*L5.40mm CAE226M0JHUZCE4TRC Data Sheet View Inventory
47µF 50V ±20% 0.68 ohm Max. 185mA 2000 hours UZ476M050HEJTA Ø6.30*L7.70mm CAE476M1HHUZEG7TRC Data Sheet View Inventory
470µF 10V ±20% 0.16 ohm Max. 600mA 2000 hours UZ477M010HFKTA Ø8.00*L10.20mm CAE477M1AHUZFJ5TR1 Data Sheet View Inventory
220µF 50V ±20% 0.25 ohm Max. 450mA 2000 hours UZ227M050HGKTA Ø10.00*L10.20mm CAE227M1HHUZGJ2TR Data Sheet View Inventory
330µF 35V ±20% 0.18 ohm Max. 600mA 2000 hours UZ337M035HGKTA Ø10.00*L10.20mm CAE337M1VHUZGJ2TR Data Sheet View Inventory
47µF 35V ±20% 0.44 ohm Max. 240mA 2000 hours UZ476M035HEHTA Ø6.30*L5.40mm CAE476M1VHUZEE4TRC Data Sheet View Inventory
220µF 35V ±20% 0.10ohm Max. 600mA 2000 hours UZ227M035HGKTA Ø10.00*L10.20mm CAE227M1VHUZGJ2TR Data Sheet View Inventory
1000µF 6.3V ±20% 0.17ohm Max. 450mA 2000 hours UZ108M6R3HFKTA Ø8.00*L10.20mm CAE108M0JHUZFJ2TR1 Data Sheet View Inventory
100µF 35V ±20% 0.34 ohm Max. 290mA 2000 hours UZ107M035HEJTA Ø6.30*L7.70mm CAE107M1VHUZEG7TRC Data Sheet View Inventory

PRODUCTS

Aluminum Elec. Capacitor

Dip Type SMD UE Series SMD UH/UL Series SMD UT Series SMD UZ Series SMD ZL/ZS/ZT Series SMD BW series SMD BZ seies SMD FZ series

Automotive Grade Crystal

XG3225 XS3225 XS2016 XG5032

Diode/Transistor/MOSFET

Bridge Rectifier Fast Recovery Diode Switching Diode General Purpose Diode High Efficiency Diode Schottky Diode Transistor Super Fast Diode TVS Diode Zener Diode ESD Diode MOSFET

Discriminator & Filter

Discriminators 450KHz/455KHz/10.7MHz Filter 10.7MHz Filter 450KHz/455KHz SMD type Filter 450KHz/455KHz Dip Type

Inductor/Coils/Choke

Power Inductor Multilayer Chip Power Inductor Chip Common Mode Inductor

Light-Emitting Diode (LED)

Auto. SMD LED 3528 PLCC-2 Auto. SMD LED 3528 PLCC-4 Auto. SMD LED 3433 PLCC-6 Auto. SMD LED 4040 Side View LED Lamp Dip Type SMD 0603/0805/1206/1615

ML. Chip Capacitor (MLCC)

0201 0402 0603 0805 1206 1210/1808/1812 MT02/MT03/MT05/MT06 RF01/RF02/RF03 SH02/SH03/SH05/SH06/SH10/SH08/SH12/ST05

Metallized Film Capacitor

Dip MKP series

Oscillator

RA(CO14) RB(CO8) RC(COM75) RD(COM53) RE(COM32) RF(COM22) RJ(COK21)/RK(COK22)/RL(COK32)/RM(COK53)/RN(COK75) RV(COM21) RY(COM11)

Quartz Crystal

XB(CM75) XC/XD(CM63/CM53) XF(CM32) XG(CA) XI(CM22) XS/XJ(CS/CSS) XM/XK/XN(CSM2/CSSM2/CSSM5) XP(CMG632) XR(CMG532) XV(CM21) XY(CM11) XZ(CM12) YA/YB/YD(CCA/CCB/CCD) YG(CCMD) YL/YR/YS/YT(CCMJ/CCMM/CCMS/CCMN) YN (CCMA) YP (CCMC) YQ(CCME) YU/YV(CCMU/CCMV) XH (HC-49SX)

Relay

General Power Relay Automotive Relay Signal Relay

Resonator

CA/CB(CRA/CRB) CD(CRTWS) CG(CRAV) CH(CRTE) CJ(CRAW) CK(CRTC) CL(CRTS) CM(CRTV) CN(CRTW) CP(CRTP) CQ(CRAP) CR(CRTR) CS(CRAS) CT(CRT) CU(CRAR)

Resistor

Wire Wound SMW series Thick Film CR series Thick Film CL series Thick Film CP series Thick Film RCR series Thin Film ARU/UR series

SAW

SAW Filter SAF SAW Filter SBF SAW Filter SDF SAW Resonator SAR SAW Resonator SBR SAW Resonator SCR/SER/SGR SAW Resonator SDR SAW Resonator SIR

SiC Schottky Diode/MOSFET

SiC Schottky Diode SiC MOSFET

Super Capacitor (EDLC)

EM Series

Tantalum Capacitor

CA42 A Dip Type CA45 A CA45 B CA45 C CA45 D CA45 E CA45L A/B/C/D/E CA45 P SMD Conductive Polymer CA55 A/B/C SMD Conductive Polymer CA55 D/E/F/H

Thermistor Crystal

TSX2520 TSX2016 TSX1612
UZ107M035HEJTA
Description and Main Parameters
100µF 35V ±20% 0.34 ohm Max. 290mA 2000 hours
Dimension
Ø6.30*L7.70mm
Original Part Number
CAE107M1VHUZEG7TRC
Documents
Data Sheet View Inventory
UZ108M6R3HFKTA
Description and Main Parameters
1000µF 6.3V ±20% 0.17ohm Max. 450mA 2000 hours
Dimension
Ø8.00*L10.20mm
Original Part Number
CAE108M0JHUZFJ2TR1
Documents
Data Sheet View Inventory
UZ227M035HGKTA
Description and Main Parameters
220µF 35V ±20% 0.10ohm Max. 600mA 2000 hours
Dimension
Ø10.00*L10.20mm
Original Part Number
CAE227M1VHUZGJ2TR
Documents
Data Sheet View Inventory
UZ476M035HEHTA
Description and Main Parameters
47µF 35V ±20% 0.44 ohm Max. 240mA 2000 hours
Dimension
Ø6.30*L5.40mm
Original Part Number
CAE476M1VHUZEE4TRC
Documents
Data Sheet View Inventory
UZ337M035HGKTA
Description and Main Parameters
330µF 35V ±20% 0.18 ohm Max. 600mA 2000 hours
Dimension
Ø10.00*L10.20mm
Original Part Number
CAE337M1VHUZGJ2TR
Documents
Data Sheet View Inventory
UZ227M050HGKTA
Description and Main Parameters
220µF 50V ±20% 0.25 ohm Max. 450mA 2000 hours
Dimension
Ø10.00*L10.20mm
Original Part Number
CAE227M1HHUZGJ2TR
Documents
Data Sheet View Inventory
UZ477M010HFKTA
Description and Main Parameters
470µF 10V ±20% 0.16 ohm Max. 600mA 2000 hours
Dimension
Ø8.00*L10.20mm
Original Part Number
CAE477M1AHUZFJ5TR1
Documents
Data Sheet View Inventory
UZ476M050HEJTA
Description and Main Parameters
47µF 50V ±20% 0.68 ohm Max. 185mA 2000 hours
Dimension
Ø6.30*L7.70mm
Original Part Number
CAE476M1HHUZEG7TRC
Documents
Data Sheet View Inventory
UZ226M6V3HCHTA
Description and Main Parameters
22µF 6.3V ±20% 1.65 ohm Max. 90mA 2000 hours
Dimension
Ø4.00*L5.40mm
Original Part Number
CAE226M0JHUZCE4TRC
Documents
Data Sheet View Inventory
UZ336M6V3HCHTA
Description and Main Parameters
33µF 6.3V ±20% 1.65 ohm Max. 90mA 2000 hours
Dimension
Ø4.00*L5.40mm
Original Part Number
CAE336M0JHUZCE4TRC
Documents
Data Sheet View Inventory
