SiC MOSFET
PROUDCTS（ A ~ Z )
Aluminum Elec. Capacitor Automotive Grade Crystal Cement Resistor Ceramic Resonator Connectors Diode/Transistor/MOSFET Discriminator & Filter Inductor/Coils/Choke Metallized Film Capacitor Light-Emitting Diode (LED) Miniature Fuses MLCC Oscillator Quartz Crystal SAW Filter/SAW Resonator SiC Schottky/MOSFET/Wafer Super Capacitor (EDLC) Tantalum Capacitor Thermistor Crystal Thick/Thin Resistor
SiC MOSFET

ALL

Image Description and Main Parameters Part Code Dimension Original Part Number Documents

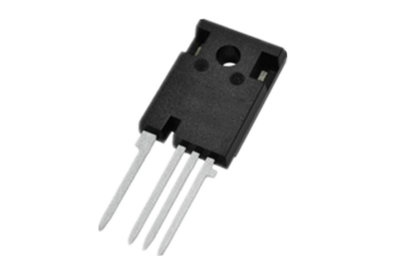

Silicon Carbide (SiC) MOSFET N-Channel 3300V 50mΩ 68A TO-247-4 LGE3M50330QL0T
LGE3M50330Q-L		 TO-247-4 LGE3M50330Q-L Data Sheet View Inventory

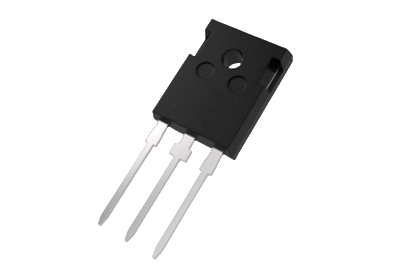

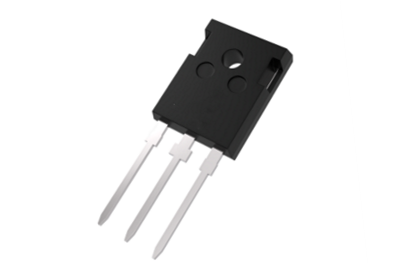

Silicon Carbide (SiC) MOSFET N-Channel 1700V 650mΩ 7A TO-247-3 LGE3M650170BLT
LGE3M650170B-L		 TO-247-3 LGE3M650170B-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 50mΩ 58A TO-247-4 LGE3M50120QL0T
LGE3M50120Q-L		 TO-247-4 LGE3M50120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 650V 59mΩ 51A TO-247-4 LGE3M60065QL0T
LGE3M60065QL0T		 TO-247-4 LGE3M60065QL0T Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1700V 45mΩ 72A TO-247-4 LGE3M45170QL0T
LGE3M45170Q-L		 TO-247-4 LGE3M45170Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 650V 40mΩ 72A TO-247-4 LGE3M40065QL0T
LGE3M40065Q-L		 TO-247-4 LGE3M40065Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 40mΩ 59A TO-247-4 LGE3M40120QL0T
LGE3M40120Q-L		 TO-247-4 LGE3M40120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 650V 28mΩ 92A TO-247-4 LGE3M30065QL0T
LGE3M30065Q-L		 TO-247-4 LGE3M30065Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 33mΩ 69A TO-247-4 LGE3M35120QL0T
LGE3M35120Q-L		 TO-247-4 LGE3M35120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 18mΩ 105A TO-247-4 LGE3M18120QL0T
LGE3M18120Q-L		 TO-247-4 LGE3M18120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 14mΩ 152A TO-247-4 LGE3M14120QL0T
LGE3M14120Q-L		 TO-247-4 LGE3M14120Q-L Data Sheet View Inventory

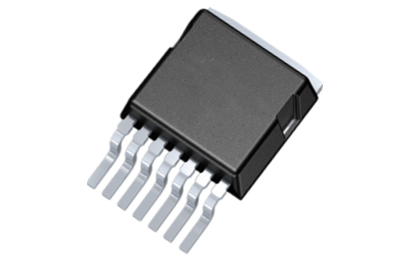

Silicon Carbide (SiC) MOSFET N-Channel 1200V 80mΩ 32A TO-263-7 LGE3M80120JL0S
LGE3M80120J-L		 TO-263-7 LGE3M80120J-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 160mΩ 20A TO-247-4 LGE3M160120QLT
LGE3M160120Q-L		 TO-247-4 LGE3M160120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 80mΩ 42A TO-247-4 LGE3M80120QL0T
LGE3M80120Q-L		 TO-247-4 LGE3M80120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 68mΩ 39A TO-247-4 LGE3M70120QL0T
LGE3M70120Q-L		 TO-247-4 LGE3M70120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 650V 28mΩ 95A TO-247-4 LGE3M28065QL0T
LGE3M28065Q-L		 TO-247-4 LGE3M28065Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 25mΩ 90A TO-247-4 LGE3M25120QL0T
LGE3M25120Q-L		 TO-247-4 LGE3M25120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 20mΩ 100A, TO-247-4 LGE3M20120QL0T
LGE3M20120Q-L		 TO-247-4 LGE3M20120Q-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET 1200V 160mΩ 17A TO-263-2 LGE3M160120ELS
LGE3M160120E-L		 TO-263-2 LGE3M160120E-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 68mΩ 36A TO-263-7 LGE3M70120JL0S
LGE3M70120J-L		 TO-263-7 LGE3M70120J-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1700V 1Ω 5A TO-247-3 LGE3M1K170BL0T
LGE3M1K170B-L		 TO-247-3 LGE3M1K170B-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 80mΩ 40A TO-247-3 LGE3M80120BL0T
LGE3M80120B -L		 TO-247-3 LGE3M80120B -L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 50mΩ 58A TO-247-3 LGE3M50120BL0T
LGE3M50120B -L		 TO-247-3 LGE3M50120B -L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 650V 40mΩ 72A TO-247-3 LGE3M40065BL0T
LGE3M40065B -L		 TO-247-3 LGE3M40065B -L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 160mΩ 19A TO-247-3 LGE3M160120BLT
LGE3M160120B-L		 TO-247-3 LGE3M160120B-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 33mΩ 69A TO-247-3 LGE3M35120BL0T
LGE3M35120B-L		 TO-247-3 LGE3M35120B-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 650V 30mΩ 91A TO-247-3 LGE3M30065BL0T
LGE3M30065B-L		 TO-247-3 LGE3M30065B-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1700V 45mΩ 72A TO-247-3 LGE3M45170BL0T
LGE3M45170B-L		 TO-247-3 LGE3M45170B-L Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 75mohm 46A 7L T/R NC1M120C75RRNG TO-263-7L NC1M120C75RR Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 40mohm 76A 3L NC1M120C40GTNG TO-247-3L NC1M120C40GT Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 40mohm 75A 4L NC1M120C40HTNG TO-247-4L NC1M120C40HT Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 75mohm 47A 4L NC1M120C75HTNG TO-247-4L NC1M120C75HT Data Sheet View Inventory
Silicon Carbide (SiC) MOSFET N-Channel 1200V 12mohm 214A 4L NC1M120C12HTNG TO-247-4L NC1M120C12HT Data Sheet View Inventory
