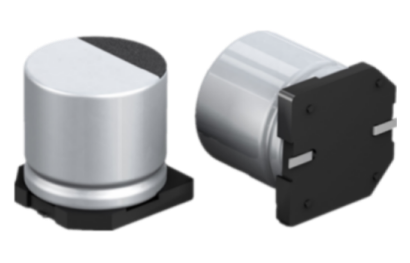

SMD BW series
PROUDCTS（ A ~ Z )
Aluminum Elec. Capacitor Diode/Transistor/MOSFET Discriminator & Filter Inductor/Coils/Choke Light-Emitting Diode (LED) ML. Chip Capacitor (MLCC) Metallized Film Capacitor Oscillator Quartz Crystal Relay Resonator Resistor SAW SiC Schottky Diode/MOSFET Super Capacitor (EDLC) Tantalum Capacitor Automotive Grade Crystals
SMD BW series

ALL

Image Description and Main Parameters Part Series Code Dimension Original Part Number Documents
Aluminum - Polymer Capacitors, AEC-Q200
33µF 80V ±20% 36mohm Max. 1360mA 4000 hours@125 C		 BW336M080HGKTA ØD10.00*L10.0mm CXE336M1KHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
47µF 80V ±20% 36mohm Max. 1360mA 4000 hours@125 C		 BW476M080HGKTA ØD10.00*L10.0mm CXE476M1KHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
22µF 80V ±20% 45mohm Max. 1050mA 4000 hours@125 C		 BW226M080HFKTA ØD8.00*L10.0mm CXE226M1KHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
82µF 63V ±20% 30mohm Max. 1400mA 4000 hours@125 C		 BW826M063HGKTA ØD10.00*L10.0mm CXE826M1JHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
68µF 63V ±20% 30mohm Max. 1400mA 4000 hours@125 C		 BW686M063HGKTA ØD10.00*L10.0mm CXE686M1JHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
56µF 63V ±20% 26mohm Max. 1500mA 4000 hours@125 C		 BW566M063HGMTA ØD10.00*L12.5mm CXE566M1JHBWG1BTR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
56µF 63V ±20% 30mohm Max. 1400mA 4000 hours@125 C		 BW566M063HGKTA ØD10.00*L10.0mm CXE566M1JHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
47µF 63V ±20% 40mohm Max. 1100mA 4000 hours@125 C		 BW476M063HFKTA ØD8.00*L10.0mm CXE476M1JHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
33µF 63V ±20% 40mohm Max. 1100mA 4000 hours@125 C		 BW336M063HFKTA ØD8.00*L10.0mm CXE336M1JHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
27µF 63V ±20% 40mohm Max. 1100mA 4000 hours@125 C		 BW276M063HFKTA ØD8.00*L10.0mm CXE276M1JHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
22µF 63V ±20% 80mohm Max. 900mA 4000 hours@125 C		 BW226M063HEJTA Ø6.30*L7.70mm CXE226M1JHBWEG7TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
10µF 63V ±20% 120mohm Max. 700mA 4000 hours@125 C		 BW106M063HEHTA ØD6.30*L5.80mm CXE106M1JHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
68µF 50V ±20% 30mohm Max. 1250mA 4000 hours@125 C		 BW686M050HFKTA ØD8.00*L10.0mm CXE686M1HHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
47µF 50V ±20% 30mohm Max. 1250mA 4000 hours@125 C		 BW476M050HFKTA ØD8.00*L10.0mm CXE476M1HHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
33µF 50V ±20% 40mohm Max. 1100mA 4000 hours@125 C		 BW336M050HEJTA Ø6.30*L7.70mm CXE336M1HHBWEG7TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
22µF 50V ±20% 80mohm Max. 750mA 4000 hours@125 C		 BW226M050HEHTA ØD6.30*L5.80mm CXE226M1HHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
120µF 50V ±20% 28mohm Max. 1600mA 4000 hours@125 C		 BW127M050HGKTA ØD10.00*L10.0mm CXE127M1HHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
100µF 50V ±20% 28mohm Max. 1600mA 4000 hours@125 C		 BW107M050HGKTA ØD10.00*L10.0mm CXE107M1HHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
68µF 35V ±20% 35mohm Max. 1400mA 4000 hours@125 C		 BW686M035HEJTA Ø6.30*L7.70mm CXE686M1VHBWEG7TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
33µF 35V ±20% 60mohm Max. 900mA 4000 hours@125 C		 BW336M035HEHTA ØD6.30*L5.80mm CXE336M1VHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
47µF 35V ±20% 60mohm Max. 900mA 4000 hours@125 C		 BW476M035HEHTA ØD6.30*L5.80mm CXE476M1VHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
270µF 35V ±20% 40mohm Max. 2000mA 4000 hours@125 C		 BW277M035HGKTA ØD10.00*L10.0mm CXE277M1VHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
27µF 35V ±20% 60mohm Max. 900mA 4000 hours@125 C		 BW276M035HEHTA ØD6.30*L5.80mm CXE276M1VHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
150µF 35V ±20% 27mohm Max. 1600mA 4000 hours@125 C		 BW157M035HFKTA ØD8.00*L10.0mm CXE157M1VHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
220µF 35V ±20% 20mohm Max. 2000mA 4000 hours@125 C		 BW227M035HGKTA ØD10.00*L10.0mm CXE227M1VHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
100µF 35V ±20% 27mohm Max. 1600mA 4000 hours@125 C		 BW107M035HFKTA ØD8.00*L10.0mm CXE107M1VHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
82µF 25V ±20% 50mohm Max. 900mA 4000 hours@125 C		 BW826M025HEHTA ØD6.30*L5.80mm CXE826M1EHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
68µF 25V ±20% 30mohm Max. 1400mA 4000 hours@125 C		 BW686M025HEJTA Ø6.30*L7.70mm CXE686M1EHBWEG7TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
56µF 25V ±20% 50mohm Max. 900mA 4000 hours@125 C		 BW566M025HEHTA ØD6.30*L5.80mm CXE566M1EHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
47µF 25V ±20% 50mohm Max. 900mA 4000 hours@125 C		 BW476M025HEHTA ØD6.30*L5.80mm CXE476M1EHBWEE8TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
330µF 25V ±20% 20mohm Max. 2000mA 4000 hours@125 C		 BW337M025HGKTA ØD10.00*L10.0mm CXE337M1EHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
220µF 25V ±20% 27mohm Max. 1600mA 4000 hours@125 C		 BW227M025HFKTA ØD8.00*L10.0mm CXE227M1EHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors, AEC-Q200
150µF 25V ±20% 27mohm Max. 1600mA 4000 hours@125 C		 BW157M025HFKTA ØD8.00*L10.0mm CXE157M1EHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
100µF 25V ±20% 30mohm Max. 1400mA 4000 hours@125 C		 BW107M025HEJTA Ø6.30*L7.70mm CXE107M1EHBWEG7TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
82µF 16V ±20% 50mohm Max. 900mA 4000 hours@125 C		 BW826M016HEHTA ØD6.30*L5.80mm CXE826M1CHBWEE8TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
470µF 16V ±20% 20mohm Max. 2000mA 4000 hours@125 C		 BW477M016HGKTA ØD10.00*L10.0mm CXE477M1CHBWG10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
270µF 16V ±20% 27mohm Max. 1600mA 4000 hours@125 C		 BW277M016HFKTA ØD8.00*L10.0mm CXE277M1CHBWF10TR Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
150µF 16V ±20% 30mohm Max. 1400mA 4000 hours@125 C		 BW157M016HEJTA Ø6.30*L7.70mm CXE157M1CHBWEG7TRC Data Sheet View Inventory
Aluminum - Polymer Capacitors AEC-Q200
33µF 63V ±20% 40mohm Max. 1100mA 4000 hours@125 C		 BW336M063HFKTA ØD8.00*L10.0mm CXE336M1JHBWF10TR Data Sheet View Inventory

PRODUCTS

Aluminum Elec. Capacitor

Dip Type SMD UE Series SMD UH/UL Series SMD UT Series SMD UZ Series SMD ZL/ZS/ZT Series SMD BW series SMD BZ seies SMD FZ series

Diode/Transistor/MOSFET

Bridge Rectifier Fast Recovery Diode Switching Diode General Purpose Diode High Efficiency Diode Schottky Diode Transistor Super Fast Diode TVS Diode Zener Diode ESD Diode MOSFET

Discriminator & Filter

Discriminators 10.7MHz Discriminators 450KHz Discriminators 455KHz Filter 10.7MHz Filter 450KHz/455KHz SMD type Filter 450KHz/455KHz Dip Type

Inductor/Coils/Choke

Power Inductor Multilayer Chip Power Inductor Chip Common Mode Inductor

Light-Emitting Diode (LED)

Auto. SMD LED 3528 PLCC-2 Auto. SMD LED 3528 PLCC-4 Auto. SMD LED 3433 PLCC-6 Auto. SMD LED 4040 Side View LED Lamp Dip Type SMD 0603/0805/1206/1615

ML. Chip Capacitor (MLCC)

0201 0402 0603 0805 1206 1210/1808/1812 MT02/MT03/MT05/MT06 RF01/RF02/RF03 SH02/SH03/SH05/SH06/SH10/SH08/SH12/ST05

Metallized Film Capacitor

Dip MKP series

Oscillator

RA(CO14) RB(CO8) RC(COM75) RD(COM53) RE(COM32) RF(COM22) RJ(COK21)/RK(COK22)/RL(COK32)/RM(COK53)/RN(COK75) RV(COM21) RY(COM11)

Quartz Crystal

XB(CM75) XC/XD(CM63/CM53) XF(CM32) XG(CA) XI(CM22) XS/XJ(CS/CSS) XM/XK/XN(CSM2/CSSM2/CSSM5) XP(CMG632) XR(CMG532) XV(CM21) XY(CM11) XZ(CM12) YA/YB/YD(CCA/CCB/CCD) YG(CCMD) YL/YR/YS(CCMJ/CCMM/CCMS) YN (CCMA) YP (CCMC) YQ(CCME) YU/YV(CCMU/CCMV) XH (HC-49SX)

Relay

General Power Relay Automotive Relay Signal Relay

Resonator

CA/CB(CRA/CRB) CD(CRTWS) CG(CRAV) CH(CRTE) CJ(CRAW) CK(CRTC) CL(CRTS) CM(CRTV) CN(CRTW) CP(CRTP) CQ(CRAP) CR(CRTR) CS(CRAS) CT(CRT) CU(CRAR)

Resistor

Wire Wound SMW series Thick Film CR series Thick Film CL series Thick Film CP series Thick Film RCR series Thin Film ARU/UR series

SAW

SAW Filter SAF SAW Filter SBF SAW Filter SDF SAW Resonator SAR SAW Resonator SBR SAW Resonator SCR/SER/SGR SAW Resonator SDR SAW Resonator SIR

SiC Schottky Diode/MOSFET

SiC Schottky Diode SiC MOSFET

Super Capacitor (EDLC)

EM Series

Tantalum Capacitor

CA42 A Dip Type CA45 A CA45 B CA45 C CA45 D CA45 E CA45L A/B/C/D/E CA45 P SMD Conductive Polymer CA55 A/B/C SMD Conductive Polymer CA55 D/E/F/H

Automotive Grade Crystals

SMD3225 Glass Sealed SMD3225 Seam Sealed SMD2016 Seam Sealed
BW336M063HFKTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
33µF 63V ±20% 40mohm Max. 1100mA 4000 hours@125 C
Dimension
ØD8.00*L10.0mm
Original Part Number
CXE336M1JHBWF10TR
Documents
Data Sheet View Inventory
BW157M016HEJTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
150µF 16V ±20% 30mohm Max. 1400mA 4000 hours@125 C
Dimension
Ø6.30*L7.70mm
Original Part Number
CXE157M1CHBWEG7TRC
Documents
Data Sheet View Inventory
BW277M016HFKTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
270µF 16V ±20% 27mohm Max. 1600mA 4000 hours@125 C
Dimension
ØD8.00*L10.0mm
Original Part Number
CXE277M1CHBWF10TR
Documents
Data Sheet View Inventory
BW477M016HGKTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
470µF 16V ±20% 20mohm Max. 2000mA 4000 hours@125 C
Dimension
ØD10.00*L10.0mm
Original Part Number
CXE477M1CHBWG10TR
Documents
Data Sheet View Inventory
BW826M016HEHTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
82µF 16V ±20% 50mohm Max. 900mA 4000 hours@125 C
Dimension
ØD6.30*L5.80mm
Original Part Number
CXE826M1CHBWEE8TR
Documents
Data Sheet View Inventory
BW107M025HEJTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
100µF 25V ±20% 30mohm Max. 1400mA 4000 hours@125 C
Dimension
Ø6.30*L7.70mm
Original Part Number
CXE107M1EHBWEG7TRC
Documents
Data Sheet View Inventory
BW157M025HFKTA
Description and Main Parameters
Aluminum - Polymer Capacitors, AEC-Q200
150µF 25V ±20% 27mohm Max. 1600mA 4000 hours@125 C
Dimension
ØD8.00*L10.0mm
Original Part Number
CXE157M1EHBWF10TR
Documents
Data Sheet View Inventory
BW227M025HFKTA
Description and Main Parameters
Aluminum - Polymer Capacitors, AEC-Q200
220µF 25V ±20% 27mohm Max. 1600mA 4000 hours@125 C
Dimension
ØD8.00*L10.0mm
Original Part Number
CXE227M1EHBWF10TR
Documents
Data Sheet View Inventory
BW337M025HGKTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
330µF 25V ±20% 20mohm Max. 2000mA 4000 hours@125 C
Dimension
ØD10.00*L10.0mm
Original Part Number
CXE337M1EHBWG10TR
Documents
Data Sheet View Inventory
BW476M025HEHTA
Description and Main Parameters
Aluminum - Polymer Capacitors AEC-Q200
47µF 25V ±20% 50mohm Max. 900mA 4000 hours@125 C
Dimension
ØD6.30*L5.80mm
Original Part Number
CXE476M1EHBWEE8TRC
Documents
Data Sheet View Inventory
