Inductor/Coils/Choke
Inductor/Coils/Choke

ALL

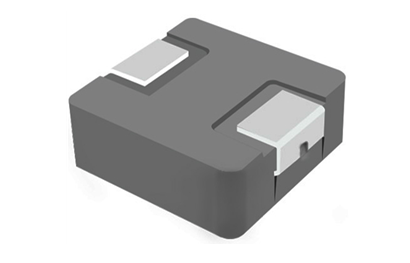

Power Inductor

Multilayer Chip Power Inductor

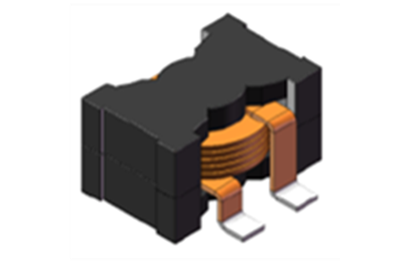

Chip Common Mode Inductor

Image Description and Main Parameters Part Code Dimension Original Part Number Documents
Chip Common Mode Inductor Impedance @100MHz: 1400Ω., 1.5A Max. MACM5045142S01 L5.0*W4.5*H2.5mm MACM5045-142 Data Sheet View Inventory
Chip Common Mode Inductor Impedance @100MHz: 1000Ω., 3.0A Max. MACM5045102S01 L5.0*W4.5*H2.5mm MACM5045-102 Data Sheet View Inventory
Chip Common Mode Inductor Impedance @100MHz: 500Ω., 4.0A Max. MACM5045501S01 L5.0*W4.5*H2.5mm MACM5045-501 Data Sheet View Inventory
Chip Common Mode Inductor Impedance @100MHz: 250Ω., 5.0A Max. MACM5045251S01 L5.0*W4.5*H2.5mm MACM5045-251 Data Sheet View Inventory
Chip Common Mode Inductor Impedance @100MHz: 100Ω., 6.0A Max. MACM5045101S01 L5.0*W4.5*H2.5mm MACM5045-101 Data Sheet View Inventory
SMD Power Inductor Inductance (L) 15 µH, Tolerance ±20%, , 4.1A, 44 mohm Max. ALMB1009150MTA L10.5*W9.5*H10.5mm ALMB1009-150MT Data Sheet View Inventory
SMD Power Inductor Inductance (L) 22µH, Tolerance ±20%, , 3.2A, 52 mohm Max. ALMB1009220MTA L10.5*W9.5*H10.5mm ALMB1009-220MT Data Sheet View Inventory
SMD Power Inductor Inductance (L) 3.3 µH, Tolerance ±20%, , 10A, 20 mohm Max. ALMB10093R3MTA L10.5*W9.5*H10.5mm ALMB1009-3R3MT Data Sheet View Inventory
SMD Power Inductor Inductance (L) 10 µH, Tolerance ±20%, , 5.0A, 22 mohm Max. ALMB1009100MTA L10.5*W9.5*H10.5mm ALMB1009-100MT Data Sheet View Inventory

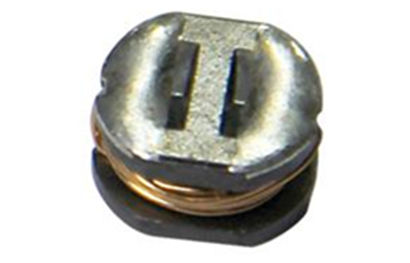

Dip Power Inductor Inductance (L) 680 µH, Tolerance 10%, 590mA, 1.6 ohm ALPK0912B681KB Ø11.0*H14.0mm ALPK-0912-681K Data Sheet View Inventory
SMD Multilayer Chip Power Inductors, MI series, 2 pads
Inductance (L) 0.47 µH, Tolerance 20%
MI2016ASR47MTA L2.0*W1.6*H0.9mm, MCPI201610S-R47MT Data Sheet View Inventory
SMD Unibody Power Inductor
Inductance (L) 10 µH, Tolerance 20%
MS1050100MS001 L11.15*W10.0*H5.0mm MS1050-100M Data Sheet View Inventory
SMD Unibody Power Inductor
Inductance (L) 3.3 µH, Tolerance 20%
MS10403R3MS001 L10.85*W10.0*H4.0mm MS1040-3R3M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 3.3µH, Tolerance 20%
MS13603R3MS001 L13.65*W12.6*H6.0mm MS1360-3R3M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 4.7µH, Tolerance 20%
MS13604R7MS001 L13.65*W12.6*H6.0mm MS1360-4R7M Data Sheet View Inventory
SMD Unibody Power Inductor
Inductance (L) 1.0 µH, Tolerance 20%
MS06301R0MS001 L7.15*W6.6*H3.0mm MS0630-1R0M Data Sheet View Inventory
SMD Unibody Power Inductor
Inductance (L) 3.3 µH, Tolerance 20%
MS06303R3MS001 L7.15*W6.6*H3.0mm MS0630-3R3M Data Sheet View Inventory
SMD Unibody Power Inductor
Inductance (L) 4.7 µH, Tolerance 20%
MS06304R7MS001 L7.15*W6.6*H3.0mm MS0630-4R7M Data Sheet View Inventory
SMD Unibody Power Inductor
Inductance (L) 4.7 µH, Tolerance 20%
MS10404R7MS001 L10.85*W10.0*H4.0mm MS1040-4R7M Data Sheet View Inventory
High Current Power Inductor
Inductance (L) 3.3 µH, Tolerance 20%
MTP29153R3ML01 L28.0*W19.0*H15.0mm MTP2915-3R3M Data Sheet View Inventory
High Current Power Inductor
Inductance (L) 6.8 µH, Tolerance 20%
MTP29156R8ML01 L28.0*W19.0*H15.0mm MTP2915-6R8M Data Sheet View Inventory
High Current Power Inductor
Inductance (L) 10 µH, Tolerance 20%
MTP2915100ML01 L28.0*W19.0*H15.0mm MTP2915-100M Data Sheet View Inventory
High Current Power Inductor
Inductance (L) 15 µH, Tolerance 20%
MTP2915150ML01 L28.0*W19.0*H15.0mm MTP2915-150M Data Sheet View Inventory
High Current Power Inductor
Inductance (L) 22 µH, Tolerance 20%
MTP2915220ML01 L28.0*W19.0*H15.0mm MTP2915-220M Data Sheet View Inventory
High Current Power Inductor
Inductance (L) 27 µH, Tolerance 20%
MTP2915270ML01 L28.0*W19.0*H15.0mm MTP2915-270M Data Sheet View Inventory
High Current Power Inductor
Inductance (L) 2.2 µH, Tolerance 20%
MTP29152R2ML01 L28.0*W19.0*H15.0mm MTP2915-2R2M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 1.50mH, Tolerance 10%
MSA75152K0S001 7.8*7.0*5.0mm MSA75-152K Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 10µH, Tolerance 20%
MSA54100M0S001 5.8*5.2*4.5mm MSA54-100M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 15µH, Tolerance 20%
MSA54150M0S001 5.8*5.2*4.5mm MSA54-150M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 3.3µH, Tolerance 20%
MSA543R3M0S001 5.8*5.2*4.5mm MSA54-3R3M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 4.7µH, Tolerance 20%
MSA544R7M0S001 5.8*5.2*4.5mm MSA54-4R7M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 4.7µH, Tolerance 20%
MSA434R7M0S001 4.5*4.0*3.2mm MSA43-4R7M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 3.3µH, Tolerance 20%
MSA433R3M0S001 4.5*4.0*3.2mm MSA43-3R3M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 1.5µH, Tolerance 20%
MSA431R5M0S001 4.5*4.0*3.2mm MSA43-1R5M Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 680µH, Tolerance 20%
MSA75681K0S001 7.8*7.0*5.0mm MSA75-681K Data Sheet View Inventory
SMD Power Inductor
Inductance (L) 2.2µH, Tolerance 20%
MSA752R2M0S001 7.8*7.0*5.0mm MSA75-2R2M Data Sheet View Inventory
