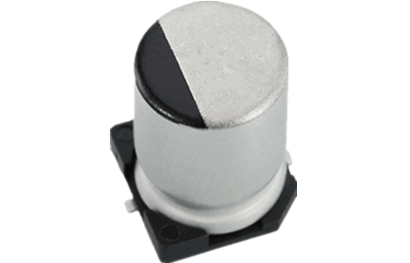

SMD FZ series
PROUDCTS（ A ~ Z )
Aluminum Elec. Capacitor Automotive Grade Crystal Cement Resistor Ceramic Resonator Connectors Diode/Transistor/MOSFET Discriminator & Filter Inductor/Coils/Choke Metallized Film Capacitor Light-Emitting Diode (LED) Miniature Fuses ML. Chip Capacitor (MLCC) Oscillator Quartz Crystal SAW Filter/SAW Resonator SiC Schottky/MOSFET/Wafer Super Capacitor (EDLC) Tantalum Capacitor Thermistor Crystal Thick/Thin Resistor
SMD FZ series

ALL

Image Description and Main Parameters Part Code Dimension Original Part Number Documents
470µF 25V ±20% 0.09 ohm Max. 850 mA 5000 hours FZ477M025HGKTB
CAE477M1EHFZGJ5TR1		 ØD10.0*L10.5mm CAE477M1EHFZGJ5TR1 Data Sheet View Inventory
470µF 25V ±20% 0.09 ohm Max. 670 mA 5000 hours FZ477M025HGKTA
CAE477M1EHFZGJ5TR		 Ø10.0*L10.5mm CAE477M1EHFZGJ5TR Data Sheet View Inventory
470µF 6.3V ±20% 0.16 ohm Max. 600 mA 5000 hours FZ477M6V3HFKTB
CAE477M0JHFZFJ5TR1		 Ø8.00*L10.5mm CAE477M0JHFZFJ5TR1 Data Sheet View Inventory
470µF 6.3V ±20% 0.17 ohm Max. 450 mA 5000 hours FZ477M6V3HFKTA
CAE477M0JHFZFJ5TR		 Ø8.00*L10.5mm CAE477M0JHFZFJ5TR Data Sheet View Inventory
47µF 63V ±20% 0.65 ohm Max. 250 mA 5000 hours FZ476M063HFKTA
CAE476M1JHFZFJ5TR		 Ø8.00*L10.5mm CAE476M1JHFZFJ5TR Data Sheet View Inventory
47µF 50V ±20% 0.68 ohm Max. 195 mA 3000 hours FZ476M050HFITB
CAE476M1HHFZFF5TR1		 Ø8.00*L6.50mm CAE476M1HHFZFF5TR1 Data Sheet View Inventory
47µF 50V ±20% 0.68 ohm Max. 185 mA 3000 hours FZ476M050HFITA
CAE476M1HHFZFF5TR		 Ø8.00*L6.50mm CAE476M1HHFZFF5TR Data Sheet View Inventory
47µF 50V ±20% 0.68 ohm Max. 195 mA 3000 hours FZ476M050HEJTB
CAE476M1HHFZEG7TRC1		 Ø6.30*L7.70mm CAE476M1HHFZEG7TRC1 Data Sheet View Inventory
330µF 50V ±20% 0.12 ohm Max. 900 mA 5000 hours FZ337M050HPNTA
CAE337M1HHFZI1CTR		 Ø12.5*L13.5mm CAE337M1HHFZI1CTR Data Sheet View Inventory
330µF 25V ±20% 0.16 ohm Max. 600 mA 5000 hours FZ337M025HFKTB
CAE337M1EHFZFJ5TR1		 Ø8.00*L10.5mm CAE337M1EHFZFJ5TR1 Data Sheet View Inventory
330µF 25V ±20% 0.17 ohm Max. 450 mA 5000 hours FZ337M025HFKTA
CAE337M1EHFZFJ5TR		 Ø8.00*L10.5mm CAE337M1EHFZFJ5TR Data Sheet View Inventory
220µF 50V ±20% 0.18 ohm Max. 670 mA 5000 hours FZ227M050HGKTA
CAE227M1HHFZGJ5TR		 Ø10.0*L10.5mm CAE227M1HHFZGJ5TR Data Sheet View Inventory
22µF 35V ±20% 0.44 ohm Max. 230 mA 2000 hours FZ226M035HEHTB
CAE226M1VHFZEE7TRC1		 Ø6.30*L5.70mm CAE226M1VHFZEE7TRC1 Data Sheet View Inventory
1000µF 25V ±20% 0.06 ohm Max. 1100 mA 5000 hours FZ108M025HPNTB
CAE108M1EHFZI1CTR1		 Ø12.5*L13.5mm CAE108M1EHFZI1CTR1 Data Sheet View Inventory
1000µF 25V ±20% 0.07 ohm Max. 820 mA 5000 hours FZ108M025HPNTA
CAE108M1EHFZI1CTR		 Ø12.5*L13.5mm CAE108M1EHFZI1CTR Data Sheet View Inventory
1000µF 10V ±20% 0.08 ohm Max. 850 mA 5000 hours FZ108M010HGKTB
CAE108M1AHFZGJ5TR1		 Ø10.0*L10.5mm CAE108M1AHFZGJ5TR1 Data Sheet View Inventory
1000µF 10V ±20% 0.09 ohm Max. 850 mA 5000 hours FZ108M010HGKTA
CAE108M1AHFZGJ5TR		 Ø10.0*L10.5mm CAE108M1AHFZGJ5TR Data Sheet View Inventory
100µF 50V ±20% 0.34 ohm Max. 360 mA 5000 hours FZ107M050HFKTA
CAE107M1HHFZFJ5TR		 Ø8.00*L10.5mm CAE107M1HHFZFJ5TR Data Sheet View Inventory
10µF 50V ±20% 0.88 ohm Max. 165 mA 2000 hours FZ106M050HEHTA
CAE106M1HHFZEE7TRC		 Ø6.30*L5.70mm CAE106M1HHFZEE7TRC Data Sheet View Inventory
10µF 50V ±20% 1.52 ohm Max. 85 mA 2000 hours FZ106M050HDHTB
CAE106M1HHFZDE7TRC1		 Ø5.00*L5.70mm CAE106M1HHFZDE7TRC1 Data Sheet View Inventory
470µF 16V ±20% 0.17 ohm Max. 450 mA 5000 hours FZ477M016HFKTA
CAE477M1CHFZFJ5TR		 ØD8.0*L10.5mm CAE477M1CHFZFJ5TR Data Sheet View Inventory
4.7µF 63V ±20% 2.9 ohm Max. 60 mA 2000 hours FZ475M063HDHTA
CAE475M1JHFZDE7TRC		 Ø5.00*L5.70mm CAE475M1JHFZDE7TRC Data Sheet View Inventory
1.0µF 50V ±20% 2.9 ohm Max. 60 mA 2000 hours FZ105M050HCHTA
CAE105M1HHFZCE7TRC1		 Ø4.00*L5.70mm CAE105M1HHFZCE7TRC1 Data Sheet View Inventory
330µF 25V ±20% 0.09 ohm Max. 670 mA 5000 hours FZ337M025HGKTA
CAE337M1EHFZGJ2TR		 Ø10.0*L10.2mm CAE337M1EHFZGJ2TR Data Sheet View Inventory
22µF 35V ±20% 0.80 ohm Max. 150 mA 2000 hours FZ226M035HDHTA
CAE226M1VHFZDE7TRC		 Ø5.00*L5.70mm CAE226M1VHFZDE7TRC Data Sheet View Inventory
22µF 35V ±20% 0.44 ohm Max. 230 mA 2000 hours FZ226M035HEHTA
CAE226M1VHFZEE7TRC		 Ø6.30*L5.70mm CAE226M1VHFZEE7TRC Data Sheet View Inventory
47µF 50V ±20% 0.68 ohm Max. 195 mA 3000 hours FZ476M050HEJTA
CAE476M1HHFZEG7TRC		 Ø6.30*L7.70mm CAE476M1HHFZEG7TRC Data Sheet View Inventory
47µF 35V ±20% 0.44 ohm Max. 230 mA 3000 hours FZ476M035HFITA
CAE476M1VHFZFF5TR		 Ø8.00*L6.50mm CAE476M1VHFZFF5TR Data Sheet View Inventory
