| Image | Description and Main Parameters | Part Series Code | Dimension | Original Part Number | Documents | |
|---|---|---|---|---|---|---|
|
CAP,SMD,0805,X7R,330nF,±10%,25V | 0805B334K250CC | L2.00*W1.25*H1.25mm | 0805B334K250CC | Data Sheet | View Inventory |
|
|
CAP, SMD, 0603, X5R, 1μF, ±10%, 25V | 0603W105K250XD | L1.60*W0.80*H0.85mm | 0603W105K250XD | Data Sheet | View Inventory |
|

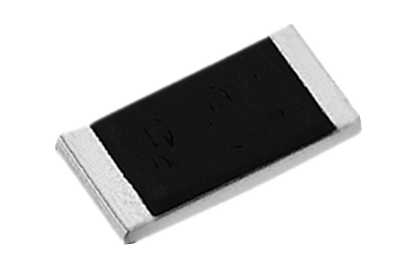

RES,SMD,1206,±1%,3.9KΩ,1/4W | CR1206FB3K9S01 | L3.10*W1.60*H0.60mm | CR06FB3K9 | Data Sheet | View Inventory |
|

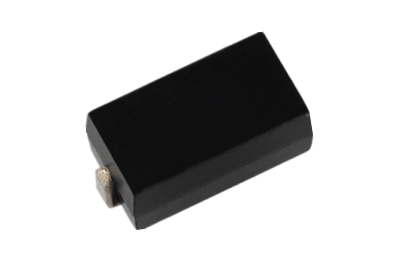

SMD Power Wire Wound Resistors, SMW series SMD6925 Type Rated Wattage 3W. Nominal Resistance 10 Ω, Tolerance: ±1% |
SMW3WL010RFS62 | L17.53xW6.98xH7.49mm | SMW3WL10RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD6925 Type Rated Wattage 3W. Nominal Resistance 100 Ω, Tolerance: ±1% |
SMW3WL100RFS62 | L17.53xW6.98xH7.49mm | SMW3WL100RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD6925 Type Rated Wattage 3W. Nominal Resistance 0.5 Ω, Tolerance: ±1% |
SMW3WL00R5FS62 | L17.53xW6.98xH7.49mm | SMW3WL0R5F | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD6925 Type Rated Wattage 3W. Nominal Resistance 1 Ω, Tolerance: ±1% |
SMW3WL001RFS62 | L17.53xW6.98xH7.49mm | SMW3WL1RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 2 Ω, Tolerance: ±1% |
SMW2WL002RFS42 | L11.56xW6.98xH4.49mm | SMW2WL2RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 5 Ω, Tolerance: ±1% |
SMW2WL005RFS42 | L11.56xW6.98xH4.49mm | SMW2WL5RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 10 Ω, Tolerance: ±1% |
SMW2WL010RFS42 | L11.56xW6.98xH4.49mm | SMW2WL10RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 20 Ω, Tolerance: ±1% |
SMW2WL020RFS42 | L11.56xW6.98xH4.49mm | SMW2WL20RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 50 Ω, Tolerance: ±1% |
SMW2WL050RFS42 | L11.56xW6.98xH4.49mm | SMW2WL50RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 100 Ω, Tolerance: ±1% |
SMW2WL100RFS42 | L11.56xW6.98xH4.49mm | SMW2WL100RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD2515 Type Rated Wattage 1W. Nominal Resistance 2 Ω, Tolerance: ±1% |
SMW1WL002RFS21 | L6.35xW3.81xH3.17mm | SMW1WL2RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD2515 Type Rated Wattage 1W. Nominal Resistance 5 Ω, Tolerance: ±1% |
SMW1WL005RFS21 | L6.35xW3.81xH3.17mm | SMW1WL5RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD2515 Type Rated Wattage 1W. Nominal Resistance 0.5 Ω, Tolerance: ±1% |
SMW1WL00R5FS21 | L6.35xW3.81xH3.17mm | SMW1WL0R5F | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD2515 Type Rated Wattage 1W. Nominal Resistance 10 Ω, Tolerance: ±1% |
SMW1WL010RFS21 | L6.35xW3.81xH3.17mm | SMW1WL10RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD2515 Type Rated Wattage 1W. Nominal Resistance 50 Ω, Tolerance: ±1% |
SMW1WL050RFS21 | L6.35xW3.81xH3.17mm | SMW1WL50RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD2515 Type Rated Wattage 1W. Nominal Resistance 100 Ω, Tolerance: ±1% |
SMW1WL100RFS21 | L6.35xW3.81xH3.17mm | SMW1WL100RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 1 Ω, Tolerance: ±1% |
SMW2WL001RFS42 | L11.56xW6.98xH4.49mm | SMW2WL1RF | Data Sheet | View Inventory |
|
|
SMD Power Wire Wound Resistors, SMW series SMD2515 Type Rated Wattage 1W. Nominal Resistance 1 Ω, Tolerance: ±1% |
SMW1WL001RFS21 | L6.35xW3.81xH3.17mm | SMW1WL1RF | Data Sheet | View Inventory |
|
|
CAP,SMD,1206,X7R,330pF,±10%,50V | 1206B331K500BD | L3.20*W1.60*H0.85mm | 1206B331K500BD | Data Sheet | View Inventory |
|
|
Cap SMD,1206,X7R,100nF,±10%,50V | 1206B104K500BD | L3.20*W1.60*H0.85mm | 1206B104K500BD | Data Sheet | View Inventory |
|
|
CAP,SMD,1206,X7R,470pF,±10%,1000V | 1206B471K102DC | L3.20*W1.60*H1.60mm | 1206B471K102DC | Data Sheet | View Inventory |
|
|
CAP,SMD,1206,X7R,1nF,±10%,2000V | 1206B102K202DC | L3.20*W1.60*H1.60mm | 1206B102K202DC | Data Sheet | View Inventory |
|
|
CAP,SMD,1206,X7R,1nF,±10%,1000V | 1206B102K102DC | L3.20*W1.60*H1.60mm | 1206B102K102DC | Data Sheet | View Inventory |
|
|
CAP,SMD,0805,X7R,0.1μF,±10%,50V | 0805B104K500BD | L2.00*W1.25*H0.85mm | 0805B104K500BD | Data Sheet | View Inventory |
|
|
CAP,SMD,0805,X7R,33nF,±10%,25V | 0805B333K250BD | L2.00*W1.25*H0.85mm | 0805B333K250BD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,NPO,22pF,±5%,50V | 0603N220J500SD | L1.60*W0.80*H0.80mm | 0603N220J500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,NPO,33pF,±5%,50V | 0603N330J500SD | L1.60*W0.80*H0.80mm | 0603N330J500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0805,X7R,2200pF,±10%,200V | 0805B222K201BD | L2.00*W1.25*H0.85mm | 0805B222K201BD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,NPO,82pF,±5%,50V | 0603N820J500SD | L1.60*W0.80*H0.80mm | 0603N820J500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,NPO,470pF,±5%,100V | 0603N471J101SD | L1.60*W0.80*H0.80mm | 0603N471J101SD | Data Sheet | View Inventory |
|
|
Cap SMD,0603,NPO,2.2pF,±0.1pF,50V | 0603N2R2B500SD | L1.60*W0.80*H0.80mm | 0603N2R2B500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,X7R,1μF,±10%,25V | 0603B105K250XD | L1.60*W0.80*H0.80mm | 0603B105K250XD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,X7R,1μF,±10%,16V | 0603B105K160XD | L1.60*W0.80*H0.80mm | 0603B105K160XD | Data Sheet | View Inventory |
|
|
CAP,SMD,0402,NPO,10pF,±5%,50V | 0402N100J500HI | L1.00*W0.50*H0.50mm | 0402N100J500HI | Data Sheet | View Inventory |
|
|
CAP,SMD,0402,X7R,0.1μF,±10%,25V | 0402B104K250HI | L1.00*W0.50*H0.50mm | 0402B104K250HI | Data Sheet | View Inventory |
|
|
Cap SMD,0201,NPO,10pF,±5%,50V | 0201N100J500LE | L0.60*W0.30*H0.30mm | 0201N100J500LE | Data Sheet | View Inventory |
|
|
RES, SMD, 0805, 4.7KΩ, ±5%, 1/8 W | CR0805JB4K7S01 | L2.00*W1.25*H0.50mm | CR05JB4K7 | Data Sheet | View Inventory |
|
|
RES, SMD, 0805, 1MΩ, ±1%, 1/8 W | CR0805FB1MS001 | L2.00*W1.25*H0.50mm | CR05FB1M | Data Sheet | View Inventory |
|
RES,SMD,0201,Jumper,0Ω,1/20W | CR0201PM0RS001 | L0.60*W0.30*H0.26mm | CR01PM0R | Data Sheet | View Inventory |
|
|
RES,SMD,0201,390 OHM,5%,1/20W | CR0201JM390RS1 | L0.60*W0.30*H0.26mm | CR01JM390R | Data Sheet | View Inventory |
|
|
RES,SMD,0201,15Ω,±5%,1/20W | CR0201JM15RS01 | L0.60*W0.30*H0.26mm | CR01JM15R | Data Sheet | View Inventory |
|
|
RES,SMD,0201,±1%,240Ω,1/20W | CR0201FM240RS1 | L0.60*W0.30*H0.26mm | CR01FM240R | Data Sheet | View Inventory |
|
|
RES,SMD,0402,39Ω,±5%,1/16W | CR0402JC39RS01 | L1.00*W0.50*H0.35mm | CR02JC39R | Data Sheet | View Inventory |
|
|
RES,SMD,0402,390Ω,±5%,1/16W | CR0402JC390RS1 | L1.00*W0.50*H0.35mm | CR02JC390R | Data Sheet | View Inventory |
|
|
RES,SMD,0603,1kΩ,±5%,1/10W | CR0603JB1KS001 | L1.60*W0.80*H0.45mm | CR03JB1K | Data Sheet | View Inventory |
|
|
RES,SMD,0603,9.31KΩ,±1%,1/10W | CR0603FB9K31S1 | L1.60*W0.80*H0.45mm | CR03FB9K31 | Data Sheet | View Inventory |
|
|
RES,SMD,0603,Thick Film,6.19KΩ,±1%,1/10W | CR0603FB6K19S1 | L1.60*W0.80*H0.45mm | CR03FB6K19 | Data Sheet | View Inventory |
|
|
RES,SMD,0603,226KΩ,±1%,1/10W | CR0603FB226KS1 | L1.60*W0.80*H0.45mm | CR03FB226K | Data Sheet | View Inventory |
|
|
RES,SMD,0603,1.21KΩ,±1%,1/10W | CR0603FB1K21S1 | L1.60*W0.80*H0.45mm | CR03FB1K21 | Data Sheet | View Inventory |
|
|
RES,SMD,0603,±5%,10kΩ,1/10W | CR0603JB10KS01 | L1.60*W0.80*H0.45mm | CR03JB10K | Data Sheet | View Inventory |
|
|
RES,SMD,0603,±5%,20KΩ,1/10W | CR0603JB20KS01 | L1.60*W0.80*H0.45mm | CR03JB20K | Data Sheet | View Inventory |
|
|
RES,SMD,0603,±1%,100kΩ,1/10W | CR0603FB100KS1 | L1.60*W0.80*H0.45mm | CR03FB100K | Data Sheet | View Inventory |
|
|
RES,SMD,0603,±1%,10kΩ,1/10W | CR0603FB10KS01 | L1.60*W0.80*H0.45mm | CR03FB10K | Data Sheet | View Inventory |
|
|
RES,SMD,0402,100kΩ,±5%,1/16W | CR0402JC100KS1 | L1.00*W0.50*H0.35mm | CR02JC100K | Data Sheet | View Inventory |
|
|
RES,SMD,0402,4.7KΩ,±5%,1/16W | CR0402JC4K7S01 | L1.00*W0.50*H0.35mm | CR02JC4K7 | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,NPO,22pF,±5%,50V | 0603N220J500SD | L1.60*W0.80*H0.80mm | 0603N220J500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,NPO,10pF,±5%,50V | 0603N100J500SD | L1.60*W0.80*H0.80mm | 0603N100J500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,X7R,0.1μF,±5%,50V | 0603B104J500XD | L1.60*W0.80*H0.80mm | 0603B104J500XD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,NPO,33pF,±5%,50V | 0603N330J500SD | L1.60*W0.80*H0.80mm | 0603N330J500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0402,X7R,1nF,±10%,50V | 0402B102K500HI | L1.00*W0.50*H0.50mm | 0402B102K500HI | Data Sheet | View Inventory |
|
|
Cap SMD,0603,X7R,1nF,±10%,50V | 0603B102K500SD | L1.60*W0.80*H0.80mm | 0603B102K500SD | Data Sheet | View Inventory |
|
|
CAP,SMD,0603,X7R,0.1μF,±10%,50V | 0603B104K500XD | L1.60*W0.80*H0.80mm | 0603B104K500XD | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 51Ω, ±1%, 1/16W | CR0402FC51RS01 | L1.00*W0.50*H0.35mm | CR02FC51R | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 1MΩ, ±5%, 1/16W | CR0402JC1MS001 | L1.00*W0.50*H0.35mm | CR02JC1M | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 1kΩ, ±1%, 1/16W | CR0402FC1KS001 | L1.00*W0.50*H0.35mm | CR02FC1K | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 15Ω, ±5%, 1/16W | CR0402JC15RS01 | L1.00*W0.50*H0.35mm | CR02JC15R | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 240Ω, ±5%, 1/16W | CR0402JC240RS1 | L1.00*W0.50*H0.35mm | CR02JC240R | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 20Ω, ±1%, 1/16W | CR0402FC20RS01 | L1.00*W0.50*H0.35mm | CR02FC20R | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 0Ω, Jumper, 1/16W | CR0402FC15KS01 | L1.00*W0.50*H0.35mm | CR02FC15K | Data Sheet | View Inventory |
|
|
RES, SMD, 0603, 100kΩ, ±5%, 1/10W | CR0603JB100KS1 | L1.60*W0.80*H0.45mm | CR03JB100K | Data Sheet | View Inventory |
|
|
RES, SMD, 0603, 0Ω, Jumper, 1/10W | CR0603PB0RS001 | L1.60*W0.80*H0.45mm | CR03PB0R | Data Sheet | View Inventory |
|
|
RES, SMD, 0402, 0Ω, Jumper, 1/16W | CR0402PC0RS001 | L1.00*W0.50*H0.35mm | CR02PC0R | Data Sheet | View Inventory |
|
|
CAP, SMD, 0603, NP0, 1.2pF, ±0.1pF, 50V | 0603N1R2B500SD | L1.60*W0.80*H0.80mm | 0603N1R2B500SD | Data Sheet | View Inventory |
|
|
Cap SMD, 0603, NP0, 1.5pF, ±0.1pF, 50V | 0603N1R5B500SD | L1.60*W0.80*H0.80mm | 0603N1R5B500SD | Data Sheet | View Inventory |
|
|
CAP, SMD, 0603, NP0, 1pF, ±0.1pF, 50V | 0603N1R0B500SD | L1.60*W0.80*H0.80mm | 0603N1R0B500SD | Data Sheet | View Inventory |
|
|
Cap SMD, 0603, NPO, 5.6pF, ±0.25pF, 50V | 0603N5R6C500SD | L1.60*W0.80*H0.80mm | 0603N5R6C500SD | Data Sheet | View Inventory |
|
|
Cap SMD, 0603, NP0, 3.3pF, ±0.1pF, 50V | 0603N3R3B500SD | L1.60*W0.80*H0.80mm | 0603N3R3B500SD | Data Sheet | View Inventory |
|
|
Cap SMD, 0603, NPO, 2.7pF, ±0.1pF, 50V | 0603N2R7B500SD | L1.60*W0.80*H0.80mm | 0603N2R7B500SD | Data Sheet | View Inventory |
|
|
Cap SMD, 0603, NP0, 2.5pF, ±0.1pF, 50V | 0603N2R5B500SD | L1.60*W0.80*H0.80mm | 0603N2R5B500SD | Data Sheet | View Inventory |
|
|
CAP, SMD, 0603, X5R, 1μF, ±10%, 16V | 0603W105K160XD | L1.60*W0.80*H0.85mm | 0603W105K160XD | Data Sheet | View Inventory |
|
|
Cap SMD, 0603, X7R, 10nF, ±10%, 50V | 0603B103K500SD | L1.60*W0.80*H0.80mm | 0603B103K500SD | Data Sheet | View Inventory |
|
|
CAP, SMD, 0402, X5R, 220nF, ±10%, 25V | 0402W224K250HI | L1.00*W0.50*H0.50mm | 0402W224K250HI | Data Sheet | View Inventory |
|
|
CAP, SMD, 0201, X5R, 0.1μF, ±10%, 10V | 0201W104K100LE | L0.60*W0.30*H0.30mm | 0201W104K100LE | Data Sheet | View Inventory |
|
|
CAP, SMD, 0603, X5R, 4.7μF, ±10%, 10V | 0603W475K100XD | L1.60*W0.80*H0.85mm | 0603W475K100XD | Data Sheet | View Inventory |
|
|
CAP, SMD, 0402, X7R, 0.1μF, ±10%, 16V | 0402B104K160HI | L1.00*W0.50*H0.50mm | 0402B104K160HI | Data Sheet | View Inventory |
|
|
CAP, SMD, 0805, X7R, 470pF, ±10%, 50V | 0805B471K500BD | L2.00*W1.25*H0.85mm | 0805B471K500BD | Data Sheet | View Inventory |
|
|
CAP, SMD, 0805, X7R, 0.1μF, ±10%, 100V | 0805B104K101CC | L2.00*W1.25*H1.25mm | 0805B104K101CC | Data Sheet | View Inventory |
|
|
CAP, SMD, 0402, X5R, 1μF, ±10%, 10V | 0402W105K100HI | L1.00*W0.50*H0.50mm | 0402W105K100HI | Data Sheet | View Inventory |
