| Image | Description and Main Parameters | Part Code | Dimension | Original Part Number | Documents | Quantity (pcs) |
|---|---|---|---|---|---|---|
 |

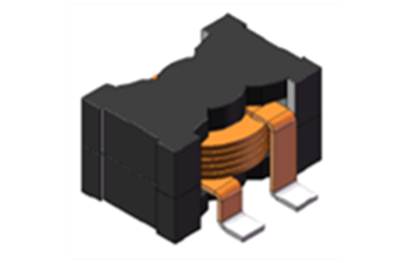

High Current Power Inductor Inductance (L) 27 µH, Tolerance 20% |
MTP2915270ML01 | L28.0*W19.0*H15.0mm | MTP2915-270M | Data Sheet | 640 |
 |
High Current Power Inductor Inductance (L) 22 µH, Tolerance 20% |
MTP2915220ML01 | L28.0*W19.0*H15.0mm | MTP2915-220M | Data Sheet | 640 |
 |
High Current Power Inductor Inductance (L) 15 µH, Tolerance 20% |
MTP2915150ML01 | L28.0*W19.0*H15.0mm | MTP2915-150M | Data Sheet | 640 |
 |
High Current Power Inductor Inductance (L) 10 µH, Tolerance 20% |
MTP2915100ML01 | L28.0*W19.0*H15.0mm | MTP2915-100M | Data Sheet | 1000 |
 |
High Current Power Inductor Inductance (L) 6.8 µH, Tolerance 20% |
MTP29156R8ML01 | L28.0*W19.0*H15.0mm | MTP2915-6R8M | Data Sheet | 640 |
 |
High Current Power Inductor Inductance (L) 3.3 µH, Tolerance 20% |
MTP29153R3ML01 | L28.0*W19.0*H15.0mm | MTP2915-3R3M | Data Sheet | 640 |
 |
High Current Power Inductor Inductance (L) 2.2 µH, Tolerance 20% |
MTP29152R2ML01 | L28.0*W19.0*H15.0mm | MTP2915-2R2M | Data Sheet | 640 |
 |

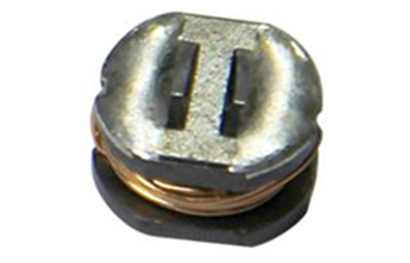

SMD Power Inductor Inductance (L) 1.5µH, Tolerance 20% |
MSA431R5M0S001 | 4.5*4.0*3.2mm | MSA43-1R5M | Data Sheet | 40000 |
 |
SMD Power Inductor Inductance (L) 3.3µH, Tolerance 20% |
MSA433R3M0S001 | 4.5*4.0*3.2mm | MSA43-3R3M | Data Sheet | 252000 |
 |
SMD Power Inductor Inductance (L) 4.7µH, Tolerance 20% |
MSA434R7M0S001 | 4.5*4.0*3.2mm | MSA43-4R7M | Data Sheet | 30000 |
 |
SMD Power Inductor Inductance (L) 4.7µH, Tolerance 20% |
MSA544R7M0S001 | 5.8*5.2*4.5mm | MSA54-4R7M | Data Sheet | 194000 |
 |
SMD Power Inductor Inductance (L) 3.3µH, Tolerance 20% |
MSA543R3M0S001 | 5.8*5.2*4.5mm | MSA54-3R3M | Data Sheet | 10000 |
 |
SMD Power Inductor Inductance (L) 15µH, Tolerance 20% |
MSA54150M0S001 | 5.8*5.2*4.5mm | MSA54-150M | Data Sheet | 64000 |
 |
SMD Power Inductor Inductance (L) 10µH, Tolerance 20% |
MSA54100M0S001 | 5.8*5.2*4.5mm | MSA54-100M | Data Sheet | 96000 |
 |
SMD Power Inductor Inductance (L) 1.50mH, Tolerance 10% |
MSA75152K0S001 | 7.8*7.0*5.0mm | MSA75-152K | Data Sheet | 101000 |
 |
SMD Power Inductor Inductance (L) 680µH, Tolerance 20% |
MSA75681K0S001 | 7.8*7.0*5.0mm | MSA75-681K | Data Sheet | 11000 |
 |
SMD Power Inductor Inductance (L) 2.2µH, Tolerance 20% |
MSA752R2M0S001 | 7.8*7.0*5.0mm | MSA75-2R2M | Data Sheet | 76000 |
 |

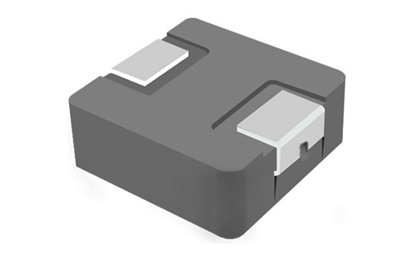

SMD Unibody Power Inductor Inductance (L) 4.7 µH, Tolerance 20% |
MS06304R7MS001 | L7.15*W6.6*H3.0mm | MS0630-4R7M | Data Sheet | 85000 |
 |
SMD Unibody Power Inductor Inductance (L) 3.3 µH, Tolerance 20% |
MS06303R3MS001 | L7.15*W6.6*H3.0mm | MS0630-3R3M | Data Sheet | 266000 |
 |
SMD Unibody Power Inductor Inductance (L) 1.0 µH, Tolerance 20% |
MS06301R0MS001 | L7.15*W6.6*H3.0mm | MS0630-1R0M | Data Sheet | 415000 |
 |
SMD Power Inductor Inductance (L) 4.7µH, Tolerance 20% |
MS13604R7MS001 | L13.65*W12.6*H6.0mm | MS1360-4R7M | Data Sheet | 11000 |
 |
SMD Power Inductor Inductance (L) 3.3µH, Tolerance 20% |
MS13603R3MS001 | L13.65*W12.6*H6.0mm | MS1360-3R3M | Data Sheet | 18000 |
 |
SMD Unibody Power Inductor Inductance (L) 3.3 µH, Tolerance 20% |
MS10403R3MS001 | L10.85*W10.0*H4.0mm | MS1040-3R3M | Data Sheet | 427000 |
 |
SMD Unibody Power Inductor Inductance (L) 10 µH, Tolerance 20% |
MS1050100MS001 | L11.15*W10.0*H5.0mm | MS1050-100M | Data Sheet | 181000 |
 |
SMD Unibody Power Inductor Inductance (L) 4.7 µH, Tolerance 20% |
MS10404R7MS001 | L10.85*W10.0*H4.0mm | MS1040-4R7M | Data Sheet | 84000 |
