| Image | Description and Main Parameters | Part Code | Dimension | Original Part Number | Documents | Quantity (pcs) |
|---|---|---|---|---|---|---|
 |

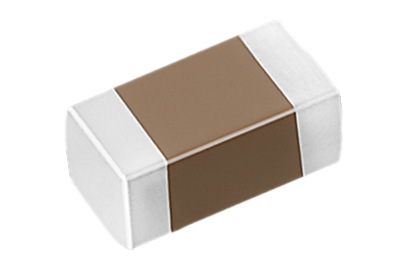

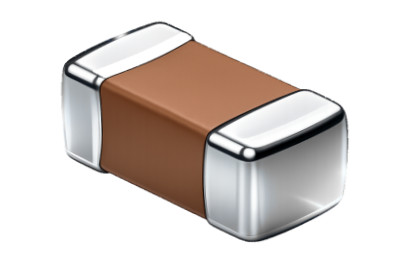

CAP,SMD,0805,X7R,4.7μF,±10%,25V, 3Kpcs/Reel | 0805B475K250CC | L2.00*W1.25*H1.25mm | 0805B475K250CC | Data Sheet | 0 |
 |

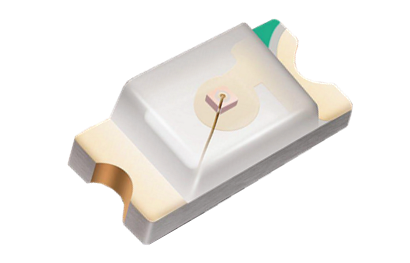

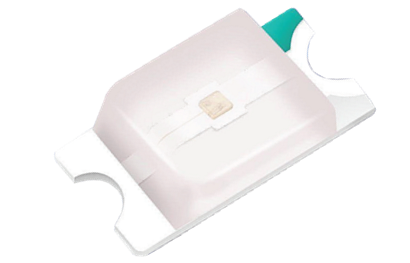

SMD LED Disc Blue Clear, IV: 95mcd Min. VF: 2.7V Min. WLD: 466nm Min. | 1206BBD8100S01 | L3.20*W1.60*H0.90mm | 1206B-BD-810 | Data Sheet | 200 |
 |

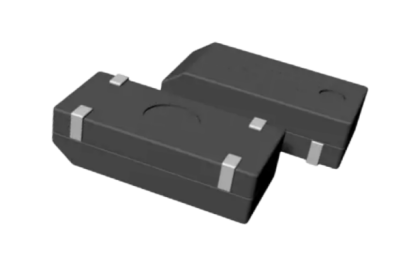

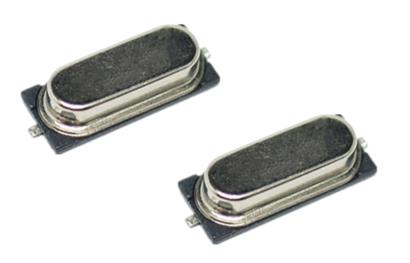

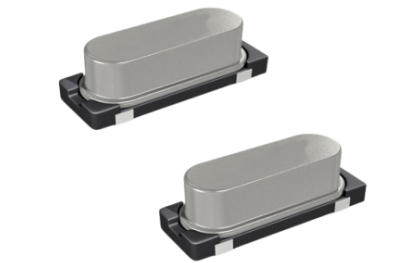

9.8304MHz MHz SMD Crystal, 4 Pads, +/-30ppm, 18pF, 40 Ohm Max. Type HC-49SX | XH9M830400S418 | L12.5*W4.95*H4.0mm | CSSX 9M8304A30-18-50-40-40TLHAH30983001804E6 | Data Sheet | 0 |
 |

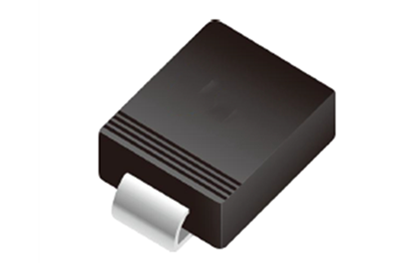

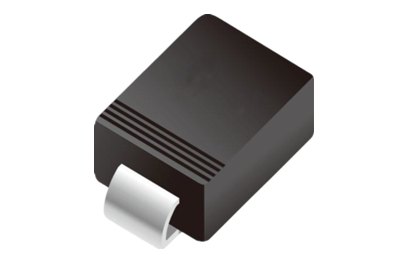

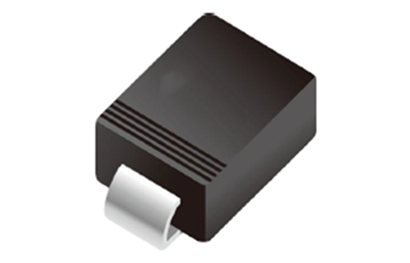

TVS Diode 28V 3000W UNI T/R | SMDJ28A000SPFG | DO-214AB, SMC | SMDJ28A | Data Sheet | 0 |
 |
CAP,SMD,0603,X7R,0.1μF,±10%,50V | 0603B104K500XD | L1.60*W0.80*H0.80mm | 0603B104K500XD | Data Sheet | 500 |
 |
CAP, SMD, 0402, NPO, 100pF, ±5%, 50V | 0402N101J500HI | L1.00*W0.50*H0.50mm | 0402N101J500HI | Data Sheet | 0 |
 |

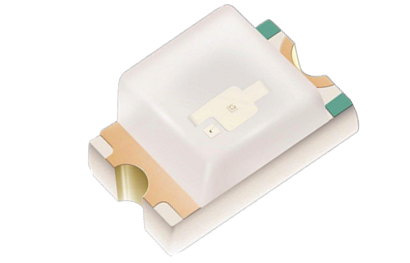

SMD LED Disc Red Clear, IV: 115mcd Min. VF: 1.8V Min. WLD: 620nm Min. | 0603RBD0700S01 | L1.60*W0.80*H0.60mm | 0603R-BD-070 | Data Sheet | 0 |
 |

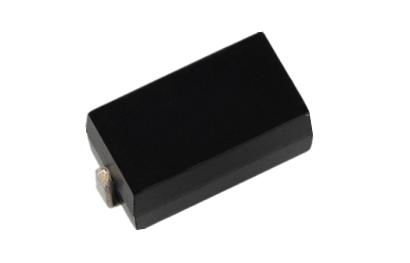

SMD Power Wire Wound Resistors, SMW series SMD4725 Type Rated Wattage 2W. Nominal Resistance 20 Ω, Tolerance: ±1% | SMW2WL020RFS42 | L11.56xW6.98xH4.49mm | SMW2WL20RF | Data Sheet | 0 |
 |
CAP, SMD, 0402, X7R,100nF,±10%,50V | 0402B104K500HI | L1.00*W0.50*H0.50mm | 0402B104K500HI | Data Sheet | 0 |
 |
CAP, SMD, 0402, X7R,10nF, ±10%, 50V | 0402B103K500HI | L1.00*W0.50*H0.50mm | 0402B103K500HI | Data Sheet | 0 |
 |
CAP,SMD,0402,X7R,0.1μF,±10%,25V | 0402B104K250HI | L1.00*W0.50*H0.50mm | 0402B104K250HI | Data Sheet | 0 |
 |
25.000MHz, SMD Crystal, Glass Seal, 2 pads, +/-30ppm, 18pF | XR25M00000S418 | L5.0*W3.2*H1.2mm | CMG532 25M0A30-18-30-40-40TLH | Data Sheet | 4000 |
 |

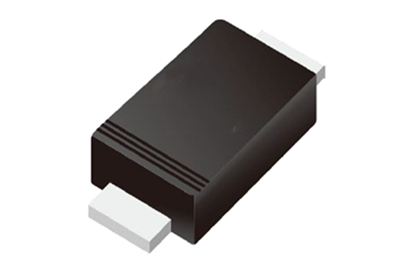

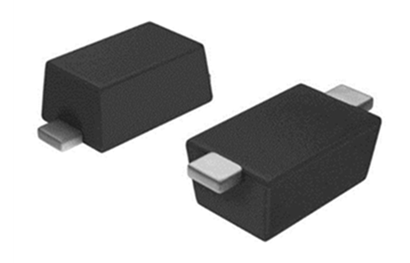

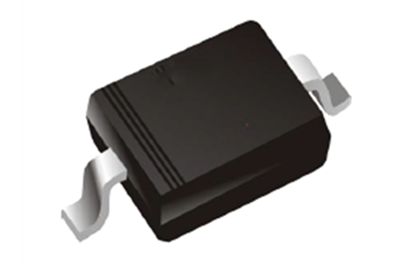

Schottky Rectifier, Repetitive Reverse Voltage 20V Max. Forward Rectified Current 2.0A Max. Case SOD123-FL DSK2L L Series | DSK22LL000S020DSK22L | SOD-123FL | DSK22L | Data Sheet | 20 |
 |
Schottky Rectifier, Repetitive Reverse Voltage 20V Max. Average Forward Rectified Current 2.0A Max. Case SOD123-FL DSL2 Series | DSL22S0000S020DSL22-S | SOD-123FL | DSL22-S | Data Sheet | 20 |
 |
10.7MHz Discriminators, 2 Pads Case 3731,Recovered Audio 3dB Band Width: 150KHz Min. | DV10M70000S0G3 | L3.7*W3.1*H1.4mm | CDCV10.7MG3 TLHJTCV10.7MG3 | Data Sheet | 85 |
 |
CAP,SMD,0805,X5R,10µF,±10%,50V, 3kpcs/Reel | 0805W106K500CC | L2.00*W1.25*H1.25mm | 0805W106K500CC | Data Sheet | 50 |
 |
CAP, SMD, 0402, X7R,100nF,±10%,50V | 0402B104K500HI | L1.00*W0.50*H0.50mm | 0402B104K500HI | Data Sheet | 50 |
 |
CAP, SMD, 0402, X5R, 10µF, ±20%, 6.3V | 0402W106M6R3HI | L1.00*W0.50*H0.50mm | 0402W106M6R3HI | Data Sheet | 0 |
 |
40.0KHz, KHz SMD Crystal, Plastic Case, 4 Pads, +/-30ppm, 12.5pF, Tape/Reel, RoHS III Compliant Exempt | YP40K00000S103 | L8.0*W3.8*H2.4mm | CCMC 40K0A30-12.5-40-50 TLHPMX206AM24000012504T6 | Data Sheet | 20 |
 |
CAP,SMD,0603,X7R,0.1μF,±10%,100V | 0603B104K101XD | L1.60*W0.80*H0.80mm | 0603B104K101XD | Data Sheet | 17 |
 |
CAP, SMD, 0402, X5R, 1µF, ±10%, 10V | 0402W105K100HI | L1.00*W0.50*H0.50mm | 0402W105K100HI | Data Sheet | 0 |
 |
CAP,SMD,0603,X7R,1μF,±10%,50V | 0603B105K500XD | L1.60*W0.80*H0.80mm | 0603B105K500XD | Data Sheet | 0 |
 |
CAP,SMD,0603,X5R,10μF,±20%,25V | 0603W106M250XD | L1.60*W0.80*H0.80mm | 0603W106M250XD | Data Sheet | 50 |
 |

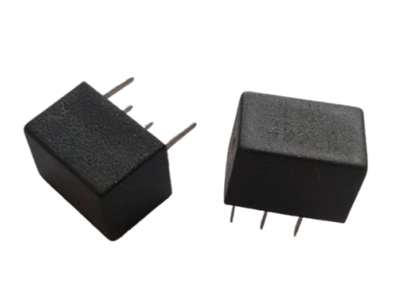

455.00KHz Dip Ceramic Filter, 5 Pins, GDT 15μsec Max, 6dB Bandwidth: ±15.0KHz Min | FB455K0000L111 | L11.0*W7.0*H8.0mm | CF 455KBW BLHLTW455KBx | Data Sheet | 5 |
 |
455KHz Discriminator 2 pads Demodulated Bandwidth(3dB): ±13.0KHz Min. | DC455K0000S136 | L6.2*W6.0*H3.1mm | CDBC 455C36 TLH | Data Sheet | 2000 |
 |

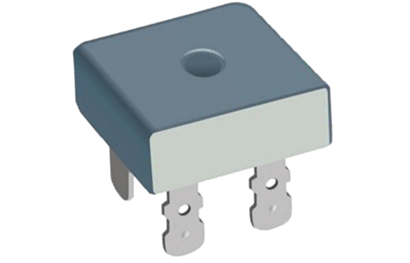

Bridge Rectifier KPBC-25 1KV 35A | KBPC351000L35A | KPBC-25 | KBPC3510 | Data Sheet | 150 |
 |
CAP,SMD,0805,X7R,0.1μF,±5%,50V, 4Kpcs/Reel | 0805B104J500BD | L2.00*W1.25*H0.85mm | 0805B104J500BD | Data Sheet | 0 |
 |
10.7MHz SMD Ceramic Filter, 3 Pads AS2 Type, 3dB Band Width:230±50KHz, Insertion Loss:6.0dB Max. | FK10M70000SAS2 | L7.0*W3.0*H1.5mm | CF73 10.7MAS2 TLHLTCA10.7MS2LTCA10.7MS2UAC0-R1 | Data Sheet | 0 |
 |
10.7MHz SMD Ceramic Filter, 3 Pads HY Type, 3dB Band Width: 110±30KHz, Insertion Loss: 6.0±2.0dB | FK10M70000S0HY | L7.0*W3.0*H1.5mm | CF73 10.7MHY TLHLTCV10.7MHYLTCV10.7MHYUAC0-R1 | Data Sheet | 0 |
 |
32.000MHz, SMD Crystal, Glass Seal, 2 pads, +/-30ppm, 8pF | XR32M00000S408 | L5.0*W3.2*H1.2mm | CMG532 32M0A30-8-30-40-30TLH | Data Sheet | 10 |
 |
CAP,SMD,0603,X5R,4.7μF,±10%,25V | 0603W475K250XD | L1.60*W0.80*H0.80mm | 0603W475K250XD | Data Sheet | 0 |
 |
Capacitance: 1000µF, Tol. ±20%, Voltage 25V, Bulk Ripple Current 740mA Max. Load Life:2000 Hours | JA108M025HGHRR | Ø10.0xH16.0mm | CBE108M1EHJAG16RR | Data Sheet | 30 |
 |
CAP, SMD, 0402, NPO, 22pF, ±5%, 50V | 0402N220J500HI | L1.00*W0.50*H0.50mm | 0402N220J500HI | Data Sheet | 10 |
 |
ESD Diode Bidirectional Type, Reverse Working Voltage 24V, Clamping Voltage 43VC Max.@1.0A SM series | SM24CL0000SC24 | SOT-23 | SM24C-L | Data Sheet | 50 |
 |
ESD Diode Bidirectional Type, Reverse Working Voltage 5.0V, Clamping Voltage 10.5VC Max.@1.0A ESD5B series | ESD5B5CU00S0LB | SOD-523 | ESD5B5CU | Data Sheet | 50 |
 |
8.000MHz,MHz SMD Plastic Crystal, ±30ppm 16pF -40°C ~ 85°C | YQ8M000000S416 | L12.50*W 4.60*H3.7mm | CCME 8M0A30-16-50-40-100TLH | Data Sheet | 0 |
 |

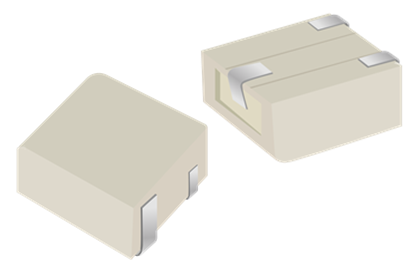

MHz SMD Ceramic Resonator,3 Pads,20.0MHz, Built in Capacitor 15pF, ±0.3%,-25°C ~ 85°C | CL20M00000S015 | L4.7*W4.1*H1.8mm | CRTS 20.0MX-15 TLHZTTCS 20.0MX-15 | Data Sheet | 5000 |
 |
100.000KHz KHz DIP Crystals DIA 2X6 2 Pins, 12.5pF, +/-50ppm -20 ~+70 C YA SERIES | YA100K0000L125 | Ø2.1*L6.2mm Max. | CCA 100K0A50-12.5-20-35BLF/DTLF206/AD2 | Data Sheet | 20 |
 |
455KHz, KHz SMD Ceramic Filter 3 Pads, GDT 25μsec Max., Insertion Loss. 5.0dB Max.,6dB Bandwidth ±7.5KHz Min | FL455K0000S214 | L6.5*W6.0*H4.2mm | CFTC 455KEUX1 TLHLTUC455KEx-1 | Data Sheet | 1000 |
 |

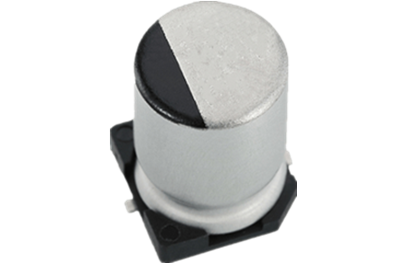

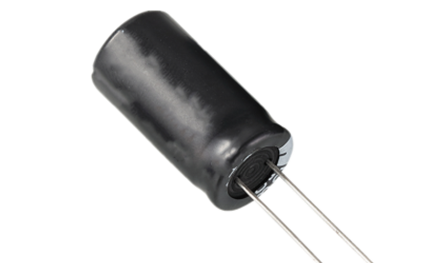

22uF 63V ±20% RC: 58mA 2000 hours | UT226M063HEJTA | Ø6.30*L7.70mm | CAE226M1JHUTEG7TR | Data Sheet | 0 |
 |

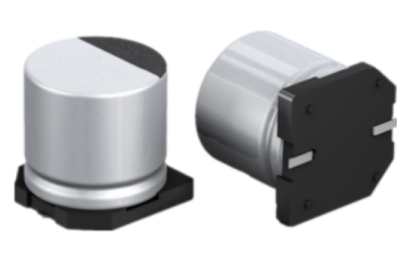

330µF 6.3V ±20% | UE337M6V3HFJTA | Ø8.00*L7.70mm | CAE337M0JHUEEG7TRC | Data Sheet | 30 |
 |
CAP,SMD,1206,X7R,10nF,±10%,1000V | 1206B103K102DC | L3.20*W1.60*H1.25mm | 1206B103K102DC-G | Data Sheet | 100 |
 |
CAP,SMD,1206,X7R,6800pF,±10%,1000V | 1206B682K102DC | L3.20*W1.60*H1.25mm | 1206B682K102DC-G | Data Sheet | 100 |
 |
455.00KHz, KHz SMD Ceramic Filter 3 Pads, Insertion Loss. 6.0dB Max., -20°C ~+85°C, 6dB Bandwidth:±3.0KHz Min | FL455K0000S117 | L6.5*W6.0*H4.2mm | LTUC455KHx | Data Sheet | 20 |
 |
455.00KHz Dip Ceramic Filter, 5 Pins, 6dB Bandwidth: ±2.0KHz Min. | FB455K0000L009 | L11.0*W7.0*H8.0mm | LT455ITW | Data Sheet | 10 |
 |
455.00KHz Dip Ceramic Filter, 5 Pins, 6dB Bandwidth: ±1.5KHz Min. | FB455K0000L010 | L11.0*W7.0*H8.0mm | LT455JTW | Data Sheet | 10 |
 |
MLCC SMD, 0402, X5R, 4.7µF, ±20%, 6.3V | B0402X5R475M6R3NTC | L1.00*W0.50*H0.50mm | B0402X5R475M6R3NTC | Data Sheet | 0 |
 |
SMD Type, CA45 Series, Case A, EIA 3216-16, Voltage 16V, Capacitance 22μF,Tolerance ±10% | CA45A016K226TA | L3.20*W1.60*H1.60mm | CA45-A016K226TE2K3 | Data Sheet | 2000 |
 |
9.375MHz MHz Thru Hole Oscillator Half-Size 5.0V +/-50ppm 1-10TTL//15pF | RB9M375000L101 | L13.2*W13.2*H5.08mm | TGS CO850BGH01 BLF-9M3750 | Data Sheet | 0 |
 |
20.480MHz MHz Thru Hole Oscillator Half-Size 3.3V +/-50ppm 1-10TTL//15pF | RB20M48000L001 | L13.2*W13.2*H5.08mm | CO830BGH01 BLF-20M4800 | Data Sheet | 0 |
 |
2.0480MHz MHz Thru Hole Oscillator Half-Size 5.0V +/-50ppm 1-10TTL//15pF | RB2M048000L001 | L13.2*W13.2*H5.08mm | CO850BGH01 BLF-2M04800 | Data Sheet | 1000 |
 |
450.00KHz, KHz SMD Ceramic Filter 3 Pads, Insertion Loss. 6.0dB Max., -20°C ~+85°C, 6dB Bandwidth:±3.0KHz Min | FL450K0000S117 | L6.5*W6.0*H4.2mm | CFTC 450KHU TLHLTUC450KHx | Data Sheet | 2000 |
 |
3.579545MHz Quartz Crystals, 49S, 2 Pins, Tolerance: +/-30ppm, CL 18pF, -40°C ~+85°C, 150 ohm Max. | XS3M579545L033 | L11.05*W4.7H*4.0mm | CS 3M579545A30-18-50-40-150 BLF | Data Sheet | 3000 |
 |
20.480MHz MHz SMD Oscillator 7020 3.3V +/-50ppm, 1-10TTL//15pF, -40~+85 C,T/R | RC20M48000S001 | L7.0*W5.0*H1.3mm | COM7530BGH01TLF-20M480 | Data Sheet | 1000 |
 |

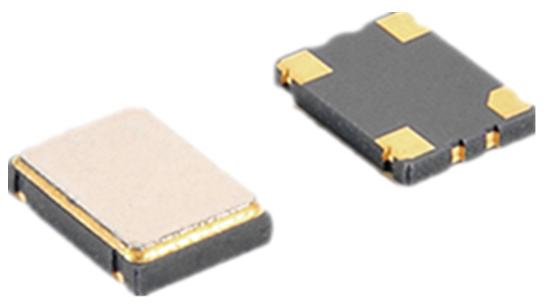

65.5360MHz MHz SMD Oscillator 7050 3.3V +/-50ppm, 1-10TTL//15pF, -40~+85 C,T/R | RC65M53600S002 | L7.0*W5.0*H1.3mm | COM7530BGH01TLF-65M536 | Data Sheet | 0 |
 |
2.0480MHz MHz SMD Oscillator 7050 3.3V +/-50ppm, 1-10TTL//15pF, -40~+85 C,T/R | RC2M048000S002 | L7.0*W5.0*H1.3mm | COM7530BGH01 TLF-2M0480 | Data Sheet | 2000 |
 |
Cap SMD,1206,X7R,100nF,±10%,50V | 1206B104K500BD | L3.20*W1.60*H0.85mm | 1206B104K500BD | Data Sheet | 0 |
 |
433.92000MHz SMD SAW Resonator 5035 Type, 4 pads, +/-30KHz, SIR series | SIR433M920S046 | L5.00*W3.50*H1.50mm | SIR 433.92MF TLFR433.92S46 | Data Sheet | 18000 |
 |
4.91MHz SMD Ceramic Resonator Built in Capacitor 30pF, ±0.5% 30 ohm Max. Q136K | CK4M910000S030ZTTCC 4.91MG-30-R30 | L7.4*W3.4*H1.8mm | CRTC 4.91MG R30 TLHZTTCC 4.91MG-30-R30 | Data Sheet | 20000 |
 |
4.0MHz, SMD Ceramic Resonator Built-in Capacitor 30pF, ±0.5% 3 Pads Case 7434 | CK4M000000S030ZTTCC 4.0MG-30-R30 | L7.4*W3.4*H1.8mm | CRTC 4.0MG TLHZTTCC 4.0MG-30-R30 | Data Sheet | 4000 |
 |
450.00KHz, KHz SMD Ceramic Filter 3 Pads, Insertion Loss. 5.0dB Max., -20°C ~+85°C, 6dB Bandwidth ±10KHz Min | FL450K0000S003 | L6.5*W6.0*H4.2mm | CFTC 450DU TLHLTUC450D | Data Sheet | 14 |
 |
16.384MHz MHz Thru Hole Oscillator Full-Size 5.0V +/-30ppm Tri-state, HCMOS 50pF | RA16M38400L515 | L20.8*W13.2*H5.08mm | CO1451DGI05 BLF-16M3840 | Data Sheet | 0 |
 |
32.768KHz, KHz SMD Crystal, 2 pads, +/-20ppm, 6pF, 70 Kohm Max. T/R, RoHS | YR32K76800S004 | L3.20*W1.50*H0.9mm | CCMM 32K768A20-6-40-70TLF | Data Sheet | 10 |
 |
1.8432MHz MHz Thru Hole Oscillator Half-Size 3.3V +/-50ppm 1-10TTL//15pF | RB1M843200L001 | L13.2*W13.2*H5.08mm | CO830BGH01 BLF-1M84320 | Data Sheet | 100 |
 |
65.536MHz MHz Thru Hole Oscillator Half-Size 5.0V, +/-50ppm, 1-10TTL//15PF | RB65M53600L101 | L13.2*W13.2*H5.08mm | CO850BGH01 BLF-65M5360 | Data Sheet | 1000 |
 |

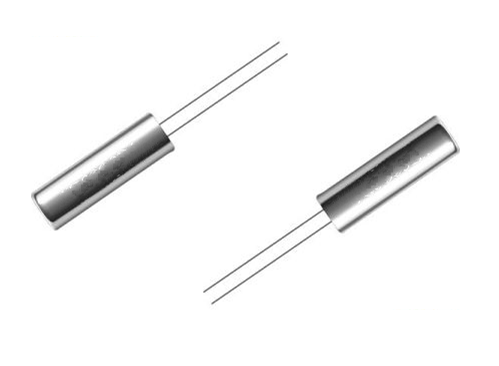

32.768KHz KHz DIP Crystals DIA 2X6 2 Pins, 12.5pF, +/-30ppm -20 ~+70 C 45K Ohm | YA32K76800L019 | Ø2.1*L6.2mm Max. | CCA 32K768A30-12.5-20-45BLF | Data Sheet | 3000 |
 |
25.0MHz Quartz Crystals, 49S, 2 Pins, Tolerance: +/-30ppm, CL 18pF, -40°C ~+85°C, 60 ohm Max. | XS25M00000L004 | L11.05*W4.7H*4.0mm | CS 25M0A30-18-30-40-60BLF | Data Sheet | 10000 |
 |
340.0MHz SMD SAW Resonator 5050 Type, 8 pads, +/-75KHz | SA340M0000S001 | L5.00*W5.00*H1.50mm | SR 340M0 M3 TLF | Data Sheet | 0 |
 |
32.768KHz, KHz SMD Crystal,2 Pads, +/-20ppm, 12.5pF, 70 Kohm Max. T/R, RoHS | YR32K76800S001 | L3.20*W1.50*H0.9mm | CCMM 32K768A20-12.5-40-70TLF | Data Sheet | 6000 |
 |
8.0MHz, Thru-Hole Ceramic Resonator, Built-in Capacitance 3 Pins | CT8M000000L100 | L10.0*W5.0*H8.0mm | TGS CRT 8.0MT BLF | Data Sheet | 10000 |
 |
9.375MHz, MHz SMD Oscillator 7050, 3.3V | RC9M375000S100 | L7.0*W5.0*H1.50mm | COM7530BGH01TLF-9M3750 | Data Sheet | 1000 |
 |
3.68MHz SMD Ceramic Resonator Built in Capacitor 30pF, ±0.5% | CK3M680000S030ZTTCC 3.68M-30 | L7.4*W3.4*H1.8mm | CRTC 3.68MG TLHZTTCC 3.68M-30 | Data Sheet | 16000 |
|
4.91MHz SMD Ceramic Resonator Built in Capacitor 30pF, ±0.5% 40 ohm Max. | CK4M910000S001ZTTCC 4.91MG-30-R40 | L7.4*W3.4*H1.8mm | CRTC 4.91MG R40 TLHZTTCC 4.91MG-30-R40 | Data Sheet | 52000 |
 |
11.0592MHz, MHz DIP Crystal, 2 Pads, +/-50ppm, 20pF | XS11M05920L006 | L11.05*W4.7H*4.0mm | CS 11M0592A50-20-50-10-50 BLF | Data Sheet | 600 |
 |
32.768KHz, KHz DIP Crystal, 2 Pins, +/-30ppm, 12.5pF | YB32K76800L015 | Ø3.1*L8.3mm | CCB 32K768A30-12.5-40-40 BLF | Data Sheet | 1000 |
 |
8.0MHz, MHz DIP Crystal, 2 Pins, +/-30ppm, 18pF | XS8M000000L056 | L11.05*W4.7H*4.0mm | CS 8M0A30-18-30-40-80 BLF | Data Sheet | 8769 |
 |
13.105MHz, MHz SMD Crystal, 2 Pads, +/-50ppm, 20pF | XM13M10500S100 | L11.5*W4.7*H4.0mm | CSM2 13M105A50-20-50-10-50 TLF | Data Sheet | 4000 |
 |
25MHz, MHz SMD Crystal, 2 Pads, +/-30ppm, 18pF | XM25M00000S024 | L11.5*W4.7*H4.0mm | CSM2 25M0A30-18-30-10-40 TLF | Data Sheet | 15000 |
 |
25MHz, MHz SMD Crystal, 2 Pads, +/-50ppm, 20pF | XM25M00000S023 | L11.5*W4.7*H4.0mm | CSM2 25M0A50-20-50-10-40 TLF | Data Sheet | 1000 |
 |
18.432MHz, MHz SMD Crystal, ±40ppm, 20pF | XC18M43200S001 | L6.0*W3.5*H1.2mm | CM63 18M432A40-20-50-40-40TLF | Data Sheet | 7000 |
 |
24.576MHz, MHz SMD Oscillator 0705, 3.3V | RC24M57600S100 | L7.0*W5.0*H1.50mm | COM7530BDH00 TLF-24M576 | Data Sheet | 1000 |
 |
25.26912MHz, MHz SMD Crystal, 2 Pads, +/-20ppm, 12pF | XM25M26912S001 | L11.4*W4.7*H4.0mm | CSM2 25M26912A20-12-30-40-40 TLF | Data Sheet | 2000 |
 |
8MHz, MHz SMD Crystal, 2 Pads, +/-50ppm, 30pF | XM8M000000S026 | L11.4*W4.7*H4.0mm | CSM2 8M0A50-30-50-40-80TLF | Data Sheet | 2000 |
 |
16MHz, MHz SMD Crystal, 2 Pads, +/-50ppm, 20pF | XM16M00000S026 | L11.4*W4.7*H4.0mm | CSM2 16M0A50-20-50-40-60TLF | Data Sheet | 2000 |
 |
48MHz, MHz SMD Crystal, 4 Pads, +/-10ppm, 8pF | XY48M00000S408 | L1.6*W1.2*H0.35mm | CM11 48M0A10-8-15-40-80 TLF | Data Sheet | 0 |
 |
12.288MHz, MHz SMD Crystal 4 Pads, +/-20ppm, 8pF | XI12M28800S101 | L2.5*W2.0*H0.55mm | CM22 12M288A20-8-20-20-150 TLF | Data Sheet | 39000 |
 |

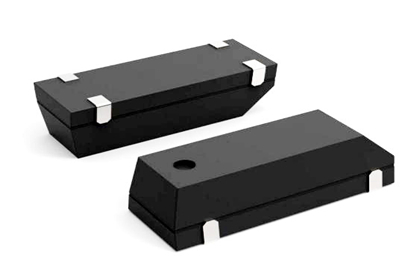

32.768KHz, KHz SMD Crystal, +/-20ppm, 6pF, 4 Pads | YP32K76800S002 | L8.0*W3.8*H2.4mm | CCMC 32K768A20-6-40-60TLH PMX206/AM23276800603T6 |
Data Sheet | 0 |
 |
32.768KHz, KHz SMD Crystal,4 Pads, +/-30ppm, 12.5pF | YP32K76800S003 | L8.0*W3.8*H2.4mm | CCMC 32K768A30-12.5-40-60TLH PMX206/AM23276812504T6 |
Data Sheet | 0 |
 |
12MHz, SMD Crystal, Glass Seal, 2 pads, +/-30ppm, 10pF | XR12M00000S101 | L5.0*W3.2*H1.2mm | CMG532 12M0A30-10-50-40-80TLH | Data Sheet | 20000 |
 |
16MHz Ceramic Resonator Built in Capacitor 22pF, ±0.3% | CM16M00000S001ZTTCV16.0MX-22 | L3.7*W3.1*H1.5mm | CRTV 16.0MT-22 TLHZTTCV16.0MX-22 | Data Sheet | 28000 |
 |
8MHz Ceramic Resonator Built in Capacitor ±0.3% | CG8M000000S001ZTACV8.0MT | L3.7*W3.1*H1.3mm | CRAV 8.0MT TLHZTACV8.0MT | Data Sheet | 0 |
