| Image |
Description and Main Parameters |
Part Code |
Dimension |
Original Part Number |
Documents |
Quantity (pcs) |
 |

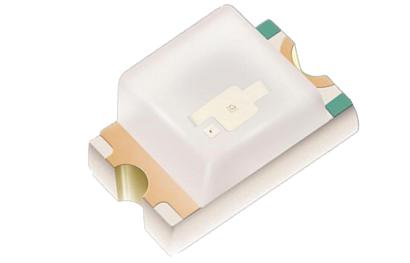

SMD LED Disc Red Clear, IV: 230mcd Min. VF: 1.8V Min. WLD: 620nm Min. |
1206RBD0900S01 |
L3.20*W1.60*H0.90mm |
1206R-BD-090 |
Data Sheet |
24000 |
 |
SMD LED Dice Red/Green/Blue Diffused, IV: 80/210/94mcd Min. VF: 1.8/2.7/2.7V Min. WLD: 620/522/467nm Min. |
1615RGBBD168S1 |
L1.60*W1.60*H0.60mm |
1615RGB-BD-168 |
Data Sheet |
12000 |
 |
SMD LED Disc Blue Clear, IV: 95mcd Min. VF: 2.7V Min. WLD: 466nm Min. |
1206BBD8100S01 |
L3.20*W1.60*H0.90mm |
1206B-BD-810 |
Data Sheet |
21000 |
 |
SMD LED Disc Red Clear, IV: 110mcd Min. VF: 1.8V Min. WLD: 620nm Min. |
0805RBD0070S01 |
L2.00*W1.25*H0.80mm |
0805R-BD-007 |
Data Sheet |
6000 |
 |
SMD LED Disc Blue Diffused, IV: 118mcd Min. VF: 2.8V Min. WLD: 467nm Min. |
0805BBD8100S01 |
L2.00*W1.25*H0.80mm |
0805B-BD-810 |
Data Sheet |
6000 |
 |
SMD LED Dice Yellow-Green Diffused, IV: 53mcd Min. VF: 1.9V Min. WLD: 570nm Min. |
0805YGBD008S01 |
L2.00*W1.25*H0.80mm |
0805YG-BD-008 |
Data Sheet |
3000 |
 |
SMD LED Dice White Diffused, IV: 170mcd Min. VF: 2.7V Min. CCT: 10000k Min. |
0805WBD8120S01 |
L2.00*W1.25*H0.80mm |
0805W-BD-812 |
Data Sheet |
9000 |
 |
SMD LED Disc Blue Clear, IV: 80mcd Min. VF: 2.6V Min. WLD: 468nm Min. |
0603BBD0680S01 |
L1.60*W0.80*H0.60mm |
0603B-BD-068 |
Data Sheet |
28000 |
 |
SMD LED Disc Red Clear, IV: 115mcd Min. VF: 1.8V Min. WLD: 620nm Min. |
0603RBD0700S01 |
L1.60*W0.80*H0.60mm |
0603R-BD-070 |
Data Sheet |
48000 |
 |
SMD LED Disc Green Clear, IV: 275mcd Min. VF: 2.6V Min. WLD: 520nm Min. |
0603GBD0790S01 |
L1.60*W0.80*H0.60mm |
0603G-BD-079 |
Data Sheet |
36000 |
