YHD series

ALL

Image Description and Main Parameters Part Code Dimension Original Part Number Documents

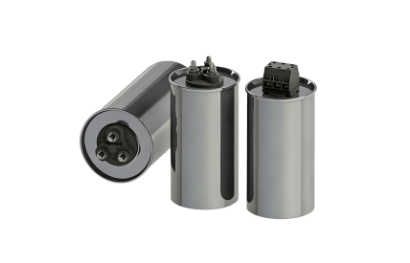

690VAC, 3×55.7µF, ±5 %, -40℃~85℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD6915575J003HW D116*H245mm YHD6915575J003HW Data Sheet View Inventory
530VAC, 3×22µF, ±5 %, -40℃~70℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD5312205J002HW D86*H200mm YHD5312205J002HW Data Sheet View Inventory
450VAC, 3×40µF, ±5 %, -40℃~85℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD4514005J001HW D86*H200mm YHD4514005J001HW Data Sheet View Inventory
450VAC, 3×30µF, ±5 %, -40℃~85℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD4513005J002HW D86*H165mm YHD4513005J002HW Data Sheet View Inventory
450VAC, 3×135µF, ±5 %, -40℃~70℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD4511356J002HW D136*H225mm YHD4511356J002HW Data Sheet View Inventory
440VAC, 3×69µF, ±5 %, -25℃~55℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD4416905J001HW D86*H200mm YHD4416905J001HW Data Sheet View Inventory
440VAC, 3×46µF, ±5 %, -25℃~55℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD4414605J001HW D86*H165mm YHD4414605J001HW Data Sheet View Inventory
440VAC, 3×23µF, ±5 %, -25℃~55℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD4412305J001HW D76*H140mm YHD4412305J001HW Data Sheet View Inventory
440VAC, 3×137µF, ±5 %, -25℃~55℃, Radial, Clamp Terminals, YHD Series
Power Factor Correction (PFC)		 YHD4411376J002HW D96*H275mm YHD4411376J002HW Data Sheet View Inventory
