TVs TP6SMB Series AEC-Q101

ALL

Image Description and Main Parameters Part Code Dimension Original Part Number Documents

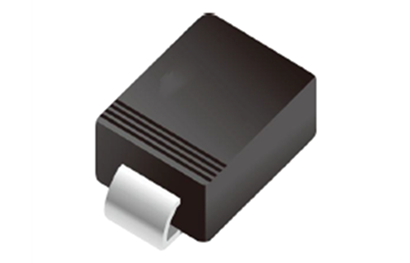

TVS Diode Unidirectional Type, Breakdown Voltage 16V, Reverse Surge Current 26.67A Max TP6SMB16AL0000
TP6SMB16A-L		 DO-214AA,
SMB		 TP6SMB16A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 15V, Reverse Surge Current 28.3A Max TP6SMB15AL0000
TP6SMB15A-L		 DO-214AA,
SMB		 TP6SMB15A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 13V, Reverse Surge Current 32.97A Max TP6SMB13AL0000
TP6SMB13A-L		 DO-214AA,
SMB		 TP6SMB13A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 12V, Reverse Surge Current 35.93A Max TP6SMB12AL0000
TP6SMB12A-L		 DO-214AA,
SMB		 TP6SMB12A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 11V, Reverse Surge Current 38.46A Max TP6SMB11AL0000
TP6SMB11A-L		 DO-214AA,
SMB		 TP6SMB11A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 10V, Reverse Surge Current 41.38A Max TP6SMB10AL0000
TP6SMB10A-L		 DO-214AA,
SMB		 TP6SMB10A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 9.1V, Reverse Surge Current 44.78A Max TP6SMB9V1AL000
TP6SMB9.1A-L		 DO-214AA,
SMB		 TP6SMB9.1A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 7.5V, Reverse Surge Current 53.1A Max TP6SMB7V5AL000
TP6SMB7.5A-L		 DO-214AA,
SMB		 TP6SMB7.5A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 6.8V, Reverse Surge Current 57.14A Max TP6SMB6V8AL000
TP6SMB6.8A-L		 DO-214AA,
SMB		 TP6SMB6.8A-L Data Sheet View Inventory
TVS Diode Unidirectional Type, Breakdown Voltage 8.2V, Reverse Surge Current 49.59A Max TP6SMB8V2AL000
TP6SMB8.2A-L		 DO-214AA,
SMB		 TP6SMB8.2A-L Data Sheet View Inventory
